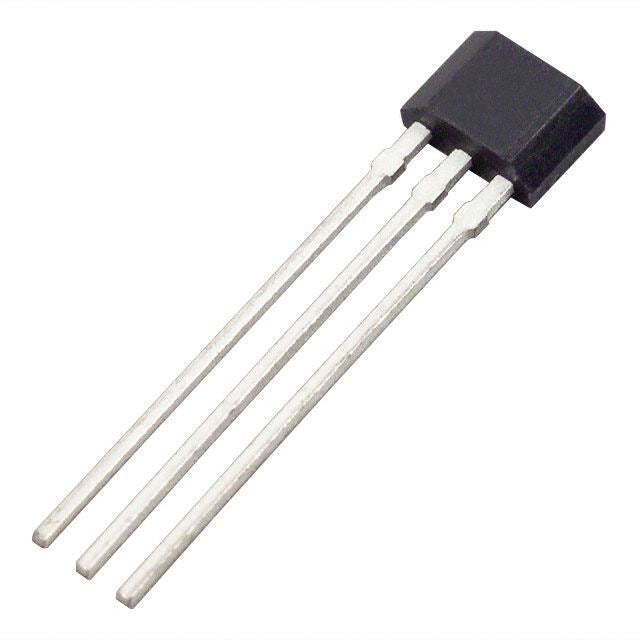

ZVN3310A MOSFET 100V 200mA N Channel TO-92

SKU 551634

MPN: ZVN3310A

Availability:
49 in stock
Original price £2.09 - Original price £2.09
Original price
£2.09 Inc VAT
£2.09 - £2.09
Current price £2.09 Inc VAT

The ZVN3310A MOSFET Transistor is a 100V N-channel through hole resistor supplied in TO-92 packaging. For further technical specifications please refer to the attached datasheet.

  • 100 Volt VDS
  • RDS(on) < 10 Ohm
  • N Channel Enhancement Mode Vertical DMOS FET
  • MOSFET 100V 200mA TO-92
Specification
Back order lead time 5 Days
Continuous drain current 0.2A
Drain source on resistance 10Ω
Drain source voltage 100V
Input capacitance 40pF
Maximum gate source voltage 2.4V
Maximum operating temperature 150°C
Mounting type Through Hole
Package TO92
Power dissipation 0.625W
Type N-Channel
