ZTX550 Transistor PNP 45V Medium Power Transistor

ZTX550 Transistor PNP 45V Medium Power Transistor

by Diodes Zetex
SKU 551625

MPN: ZTX550

Availability:
56 in stock
£1.06 - £1.06
£1.06
£1.06 - £1.06
£1.06

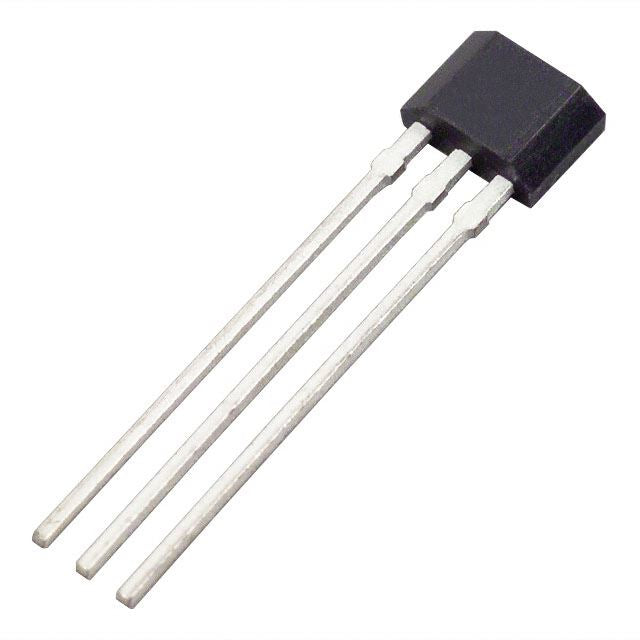

The ZTX550 transistor is a 45V silicon PNP medium power transistor with planar construction. Supplied in TO-92 packaging. For further technical specifications please refer to the attached datasheet.

  • 1A continuous current
  • PNP Small signal transistor
  • Collector Base Voltage 60V
  • PNP Silicon Planar Medium Power Transistor
  • 45V 1A TO-92
    • Download Product Data Sheet PDF
    Specification
    Back Order Lead Time 5 Days
    Collector Base Voltage 60V
    Collector Current 1A
    Collector Emitter Saturation Voltage 250mV
    Collector Emitter Voltage 45V
    DC Current Gain 100
    Maximum Operating Temperature 200°C
    Mounting Type Through Hole
    Package TO92
    Power Dissipation 1W
    Transistion Frequency 150MHz
    Type PNP
    Request a quote

    Customer Reviews

    Based on 1 review
    100%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    D
    Darren Brown
    ZTX550

    Got my vintage RACAL 9918 counter back up and running perfect with these transistors, Thanks.
