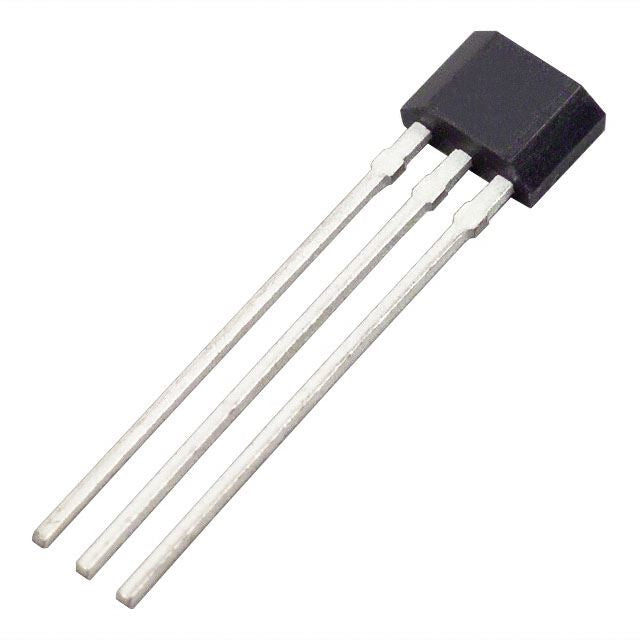

ZTX450 Transistor NPN 45V Medium Power Transistor

SKU 551623

MPN: ZTX450

Availability:
8 in stock
Original price £1.27 - Original price £1.27
Original price
£1.27 Inc VAT
£1.27 - £1.27
Current price £1.27 Inc VAT

The ZTX450 transistor is a 45V silicon NPN medium power transistor with planar construction. Supplied in TO-92 packaging. For further technical specifications please refer to the attached datasheet.

  • 1A continuous current
  • NPN Small signal transistor
  • Collector Base Voltage 60V
  • NPN Silicon Planar Medium Power Transistor
  • 45V 1A TO-92
  • Specification
    Back order lead time 5 Days
    Collector base voltage 60V
    Collector current 1A
    Collector emitter saturation voltage 250mV
    Collector emitter voltage 45V
    Dc current gain 100
    Maximum operating temperature 200°C
    Mounting type Through Hole
    Package TO92
    Power dissipation 1W
    Transistion frequency 150MHz
    Type NPN
