YW1P-1BEQM3Y Yellow 230V LED Panel Mount Pilot Light IDEC
by IDEC
SKU 493142
MPN: YW1P-1BEQM3-Y
Availability:
Only 5 left!
Original price
£0.00
-
Original price
£0.00
Original price
£0.00
£11.70
£11.70
-
£11.70
Current price
£11.70

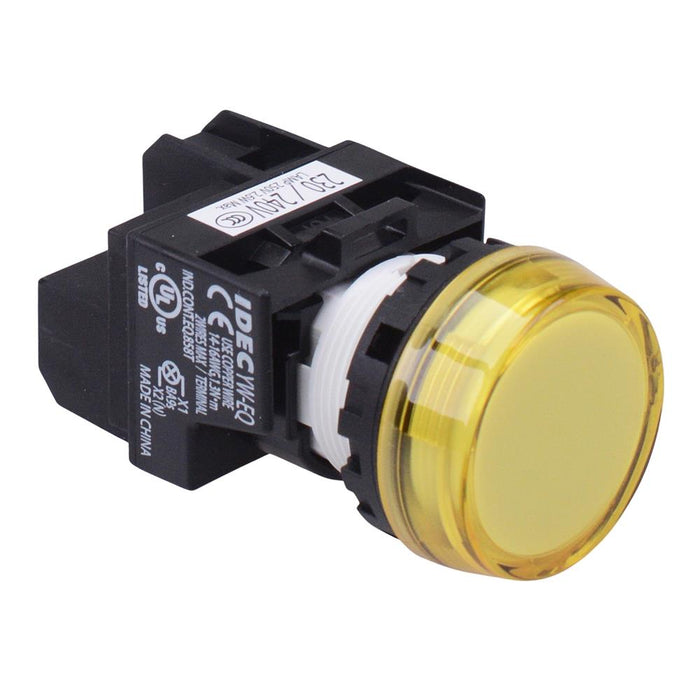

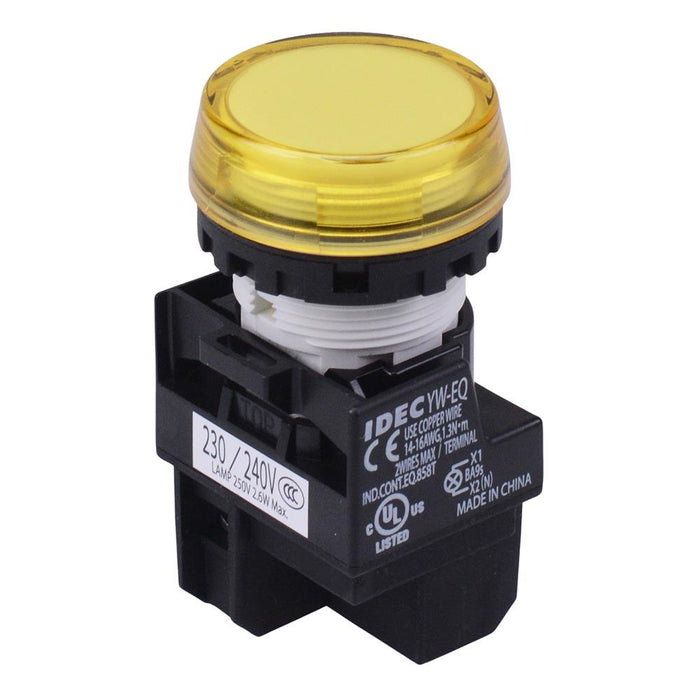

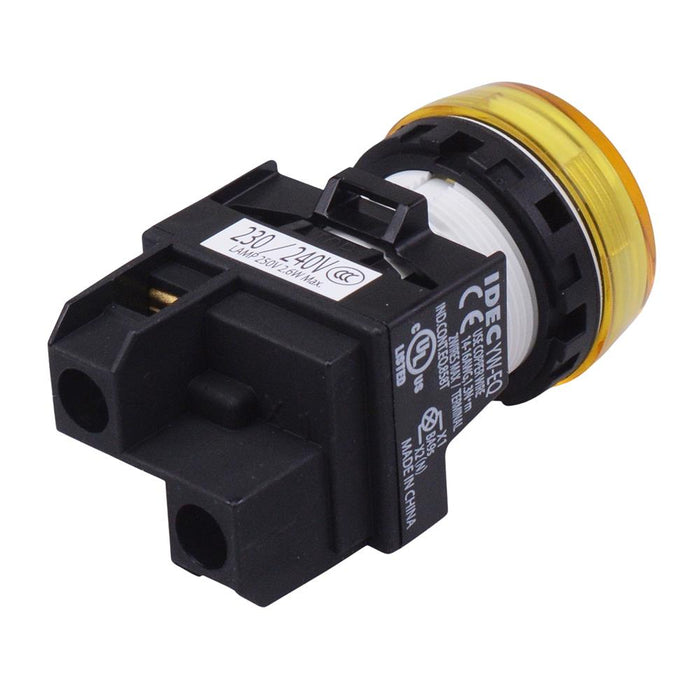

The YW1P-1BEQM3-Y is a yellow 230V/240V LED panel mount pilot light from the YW range by IDEC. The indicator features a flush head and IP65 protection level, suitable for use in harsh wearing industrial applications.
LED Lamp Screw terminals Voltage: 230V/240V AC/DC Panel cut-out diameter: 22mm Forward current: 20mA Panel thickness: 0.8-6mm Dimensions: 56.2 x 29.8mm (height x diameter)
Specification
| Back Order Lead Time | 180 Days |
| Colour | Yellow |
| Diameter | 29.8mm |
| Forward Current | 20mA |
| Height | 56.2mm |
| Lamp Type | LED |
| MOQ | 1 |
| Mounting Type | Panel Mount |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 22.3mm |
| Panel Thickness | 0.8-6mm |
| Protection Level | IP65 |
| Voltage Rating | 230/240VAC/DC |
