YW1B-V4P02R 22mm Emergency Stop Switch Push-In Terminals SPST 2NC IDEC
by IDEC
SKU 490893
MPN: YW1B-V4P02R
Availability:
110 in stock
Original price
£20.03
-
Original price
£20.03
Original price
£20.03
£20.03
-
£20.03
Current price
£20.03

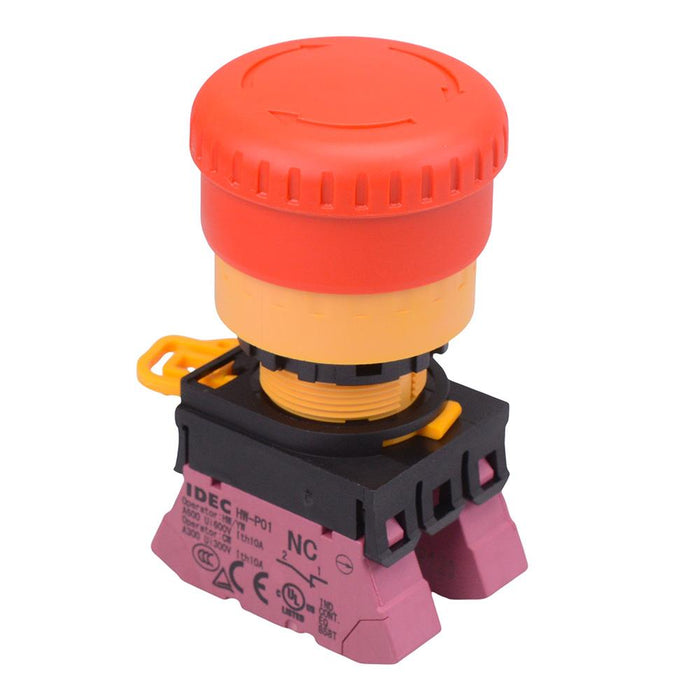

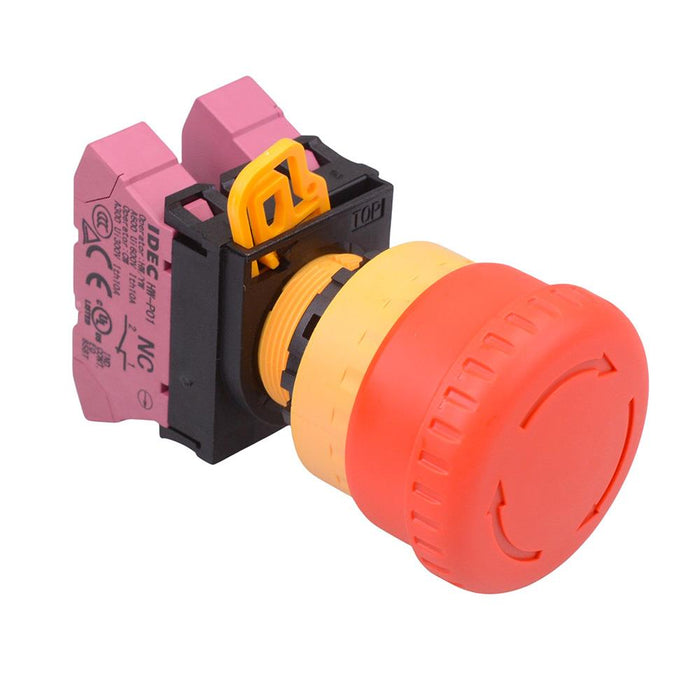

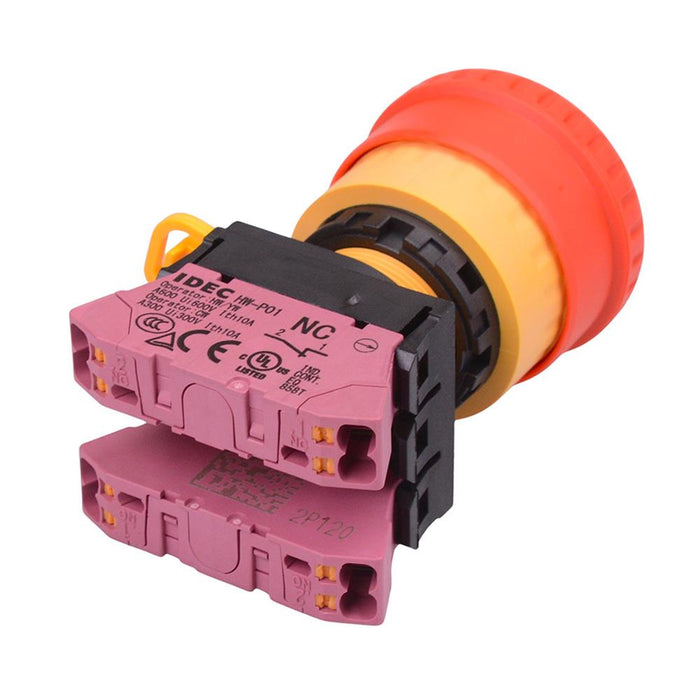

The YW1B-V4P02R is a 22mm E-stop switch manufactured by IDEC, featuring a 40mm mushroom head and 2NC contacts with push-in terminals. The switch features an innovative space saving design and can be reset by either pulling or turning. The push-in terminals reduce wiring work time by up to 55% and offer excellent strength and vibration resistance. The switch is suitable for a wide range of safety applications requiring a high quality solution.
2NC contacts 22mm panel hole diameter IP65 protection level Push-in terminals 40mm mushroom head Contact rating: 10A 120V, 6A 240V, 2A 380V
Specification
| Actuation | Twist Release |
| Back Order Lead Time | 10 Days |
| Colour | Red |
| Contact Configuration | 2NC |
| Contact Rating | 10A 120V, 6A 240V, 2A 380V |
| Current Rating | 10A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Panel Cut Out | 22.3mm |
| Panel Thickness | 0.8-6mm |
| Product Series | YW |
| Protection Level | IP65 |
| Terminal Type | Push-In |
| Voltage Rating | 600V |
