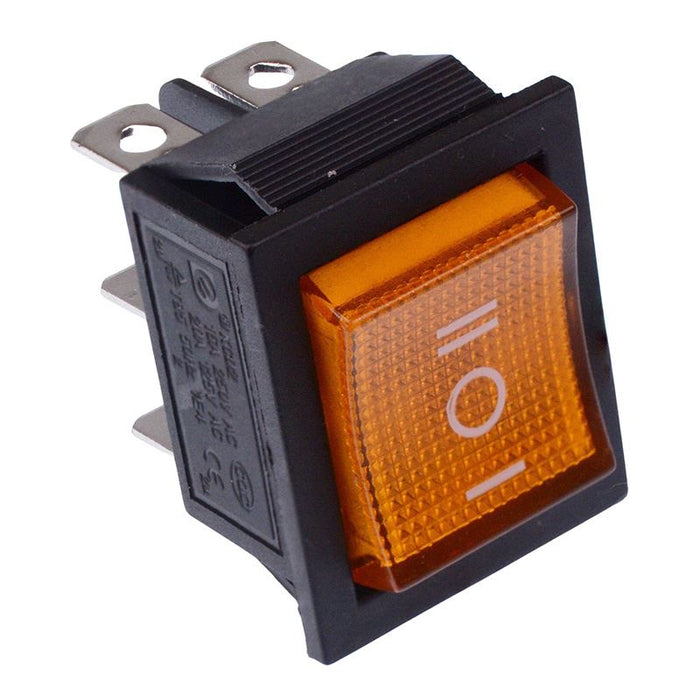

Yellow On-Off-On illuminated Rectangle Rocker Switch DPDT 230V

SKU 484640

MPN: 484640

Availability:
277 in stock
Original price £1.03 - Original price £1.03
Original price
£1.03 Inc VAT
£1.03 - £1.03
Current price £1.03 Inc VAT
Yellow illuminated rectangle rocker switch featuring DPDT contacts and On-Off-On action. The switch features quick connect terminals and is suitable for domestic, industrial and commercial applications.

  • Yellow illumination
  • On-off-on action
  • DPDT contacts
  • 220VAC illumination
  • 6.3mm quick connect terminals
  • 28.5 x 21.5mm panel cut-out
  • Rating: 20A 125VAC, 16A 250VAC
  • Dimensions: 35.5 x 31 x 25.3mm (Height x Length x Width)
  • Specification
    Back order lead time 40 Days
    Contact configuration DPDT
    Contact rating 16A 250VAC, 20A 125VAC
    Electrical life 10,000 Cycles
    Illumination voltage 230VAC
    Material PA66
    Operating temperature -25°C to +85°C
    Panel cut out 28.5 x 21.5mm
    Switch operation On-Off-On
    Terminal type Quick Connect
