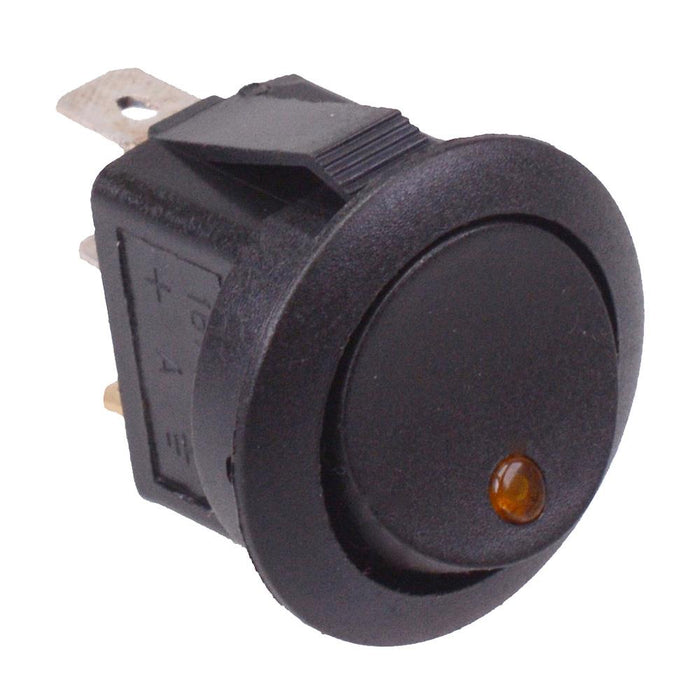

Yellow LED Round Rocker Switch 12V SPST

SKU 480915

MPN: 480915

331 in stock
Original price £1.20 - Original price £1.20
Original price
£1.20 Inc VAT
£1.20 - £1.20
Current price £1.20 Inc VAT
Circular rocker switch featuring a yellow LED suitable for 12V applications. The switch features quick connect terminals and snap-in mounting making the switch easy to install.

  • Yellow LED
  • On-Off operation
  • SPST contacts
  • 4.8mm terminals
  • Rating: 16A 12VDC
  • 20mm panel cut-out
  • Specification
    Actuation Latching
    Back order lead time 45 Days
    Colour Yellow
    Contact configuration SPST
    Contact rating 16A 12VDC
    Current rating 16A
    Electrical life 10,000 Cycles
    Illuminated Yes
    Illumination colour Yellow
    Illumination voltage 12VDC
    Material PA66
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -10°C to +85°C
    Panel cut out 20mm
    Switch operation On-Off
    Terminal type Quick Connect
    Voltage rating 12VDC
