Yellow LED On-(On) Momentary 22mm Vandal Resistant Push Switch SPDT
SKU 484974
MPN: 484974
Availability:
17 in stock
Original price
£9.50
-
Original price
£9.50
Original price
£9.50
Inc VAT
£9.50
-
£9.50
Current price
£9.50
Inc VAT

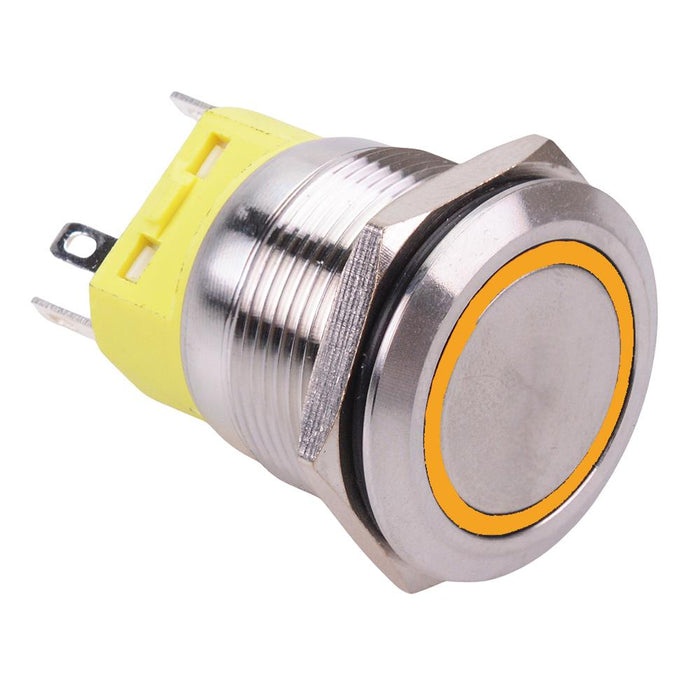

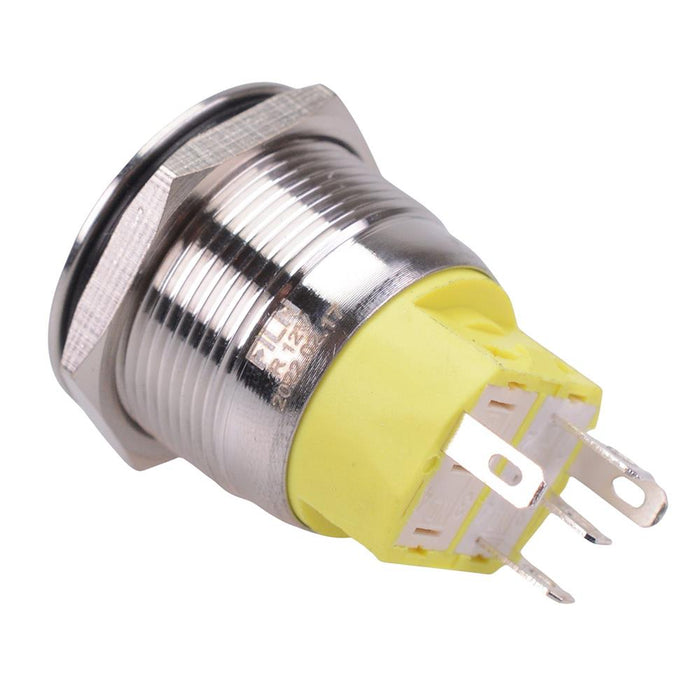

Momentary 22mm vandal resistant push button switch manufactured from stainless steel, featuring a yellow LED and NO/NC contacts. The switch features IP65 protection rating and is suitable for 12V applications including automotive.
Momentary On-(On) action Yellow LED 12V illumination voltage IP67 protection rating 22mm panel cut-out diameter NO/NC contacts 2.8mm terminals Rating: 5A 250VAC
Specification
| Actuation | Momentary |
| Back order lead time | 30 Days |
| Colour | Yellow |
| Contact configuration | SPDT |
| Contact rating | 5A 250VAC |
| Current rating | 5A |
| Electrical life | 50,000 Cycles |
| Illuminated | Yes |
| Illumination colour | Yellow |
| Illumination voltage | 12VDC |
| Material | Stainless Steel |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 22mm |
| Protection level | IP65 |
| Switch operation | On-(On) |
| Terminal type | Solder |
| Voltage rating | 250VAC |
