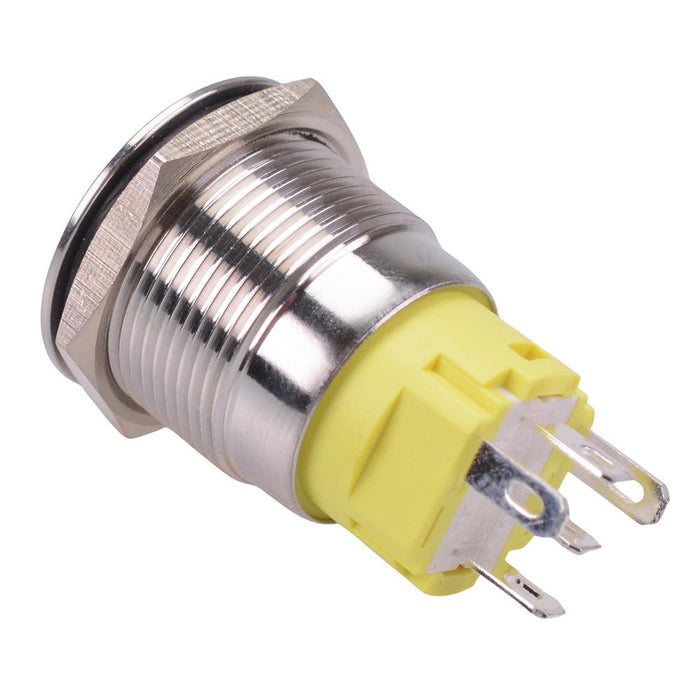

Yellow LED On-On Latching 19mm Vandal Resistant Push Button Switch SPDT

SKU 484973

MPN: 484973

Availability:
37 in stock
Original price £6.86 - Original price £6.86
Original price
£6.86
£6.86 - £6.86
Current price £6.86
Latching vandal resistant 19mm push button switch featuring a yellow 12V LED and SPDT contacts. The switch is manufactured from stainless steel and features IP65 protection rating, making it suitable for a wide range of automotive and other 12V applications.

  • Latching action
  • Yellow LED
  • 12V illumination voltage
  • IP65 protection rating
  • 19mm panel cut-out diameter
  • NO/NC contacts
  • 2.8mm terminals
  • Rating: 5A 250VAC
  • Dimensions: 35.1 x 22mm (length x diameter)
  • Specification
    Actuation Latching
    Back Order Lead Time 30 Days
    Colour Yellow
    Contact Configuration SPDT
    Contact Rating 5A 250VAC
    Current Rating 5A
    Electrical Life 50,000 Cycles
    Illuminated Yes
    Illumination Colour Yellow
    Illumination Voltage 12VDC
    Material Stainless Steel
    Mounting Style Panel
    Number of Positions 2
    Operating Temperature -25°C to +85°C
    Panel Cut Out 19mm
    Protection Level IP65
    Switch Operation On-On
    Terminal Type Quick Connect
    Voltage Rating 250VAC
