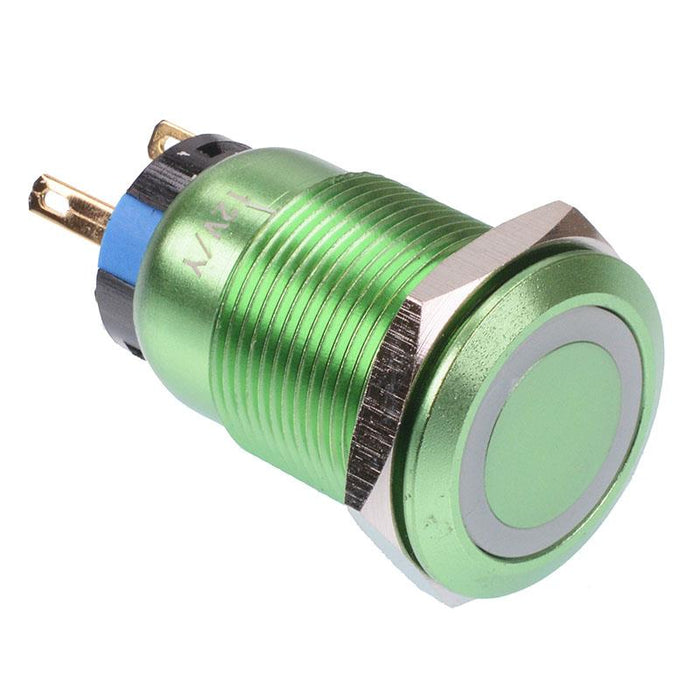

Yellow LED On-On 19mm Green Vandal Resistant Push Switch

SKU 483368

MPN: 483368

Availability:
29 in stock
Original price £4.84 - Original price £4.84
Original price
£4.84 Inc VAT
£4.84 - £4.84
Current price £4.84 Inc VAT
Vandal resistant latching push button switch featuring a yellow LED and green body. The switch features IP65 protection and is suitable for 12V applications.

  • Latching On-On action
  • Yellow LED
  • 12V illumination voltage
  • IP65 protection rating
  • 19mm panel cut-out diameter
  • NO/NC contacts
  • 2.8mm terminals
  • Rating: 5A 250VAC
  • Specification
    Actuation Latching
    Back order lead time 3 Days
    Colour Yellow
    Contact configuration SPDT
    Contact rating 5A 250VAC
    Current rating 5A
    Electrical life 50,000 Cycles
    Illuminated Yes
    Illumination colour Yellow
    Illumination voltage 12VDC
    Material Zinc Alloy
    Mounting style Panel
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 19mm
    Protection level IP65
    Switch operation On-On
    Terminal type Solder
    Voltage rating 250VAC
