Yellow LED 16mm Momentary Vandal Push Button Switch 3A SPDT

by Langir
SKU 550457

MPN: L16FM1SRY12V

Availability:
40 in stock
Original price £5.72 - Original price £5.72
Original price
£5.72
£5.72 - £5.72
Current price £5.72

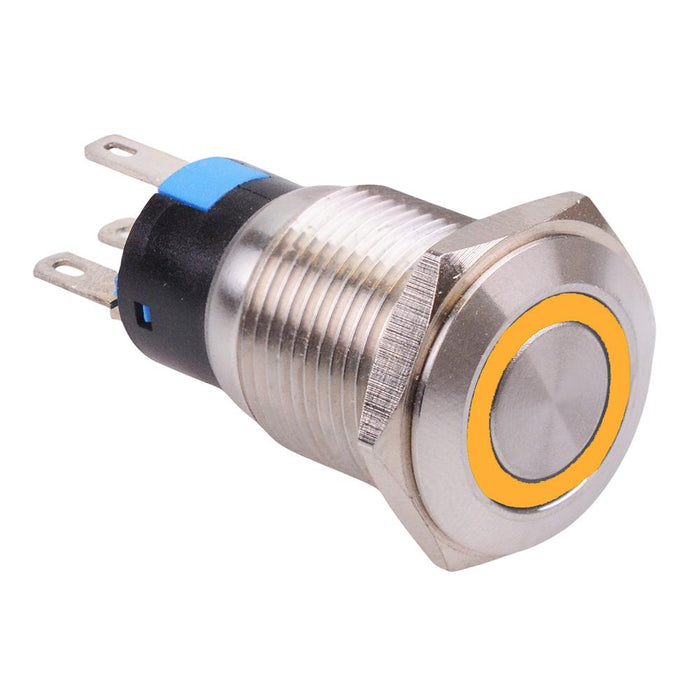

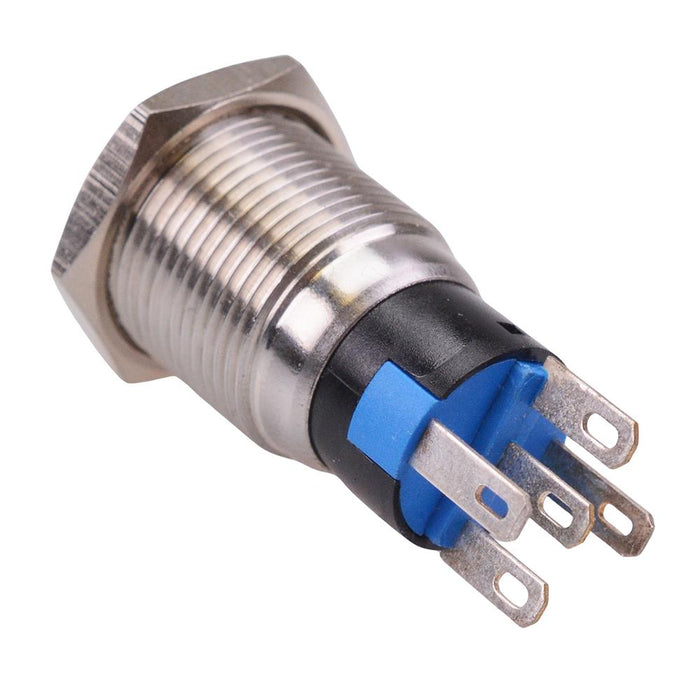

Yellow LED momentary vandal resistant switch featuring a stainless steel, suitable for a 16mm panel cut-out. The switch features a flush actuator and is suitable for 12V applications where an attractive tamper proof switch is required.

  • Momentary action
  • SPDT NO/NC contacts
  • Yellow LED 12V illumination
  • Stainless steel construction
  • Panel cut-out: 16mm
  • Panel thickness: 10mm max
  • Rating: 3A 250VAC
  • 2.8x0.8mm terminals
  • Specification
    Actuation Momentary
    Back Order Lead Time 45 Days
    Colour Yellow
    Contact Configuration SPDT
    Contact Rating 3A 250VAC
    Current Rating 3A
    Electrical Life 50,000+ Cycles
    Illuminated Yes
    Illumination Colour Yellow
    Illumination Voltage 12VDC
    Material Stainless Steel
    Mounting Style Panel
    Number of Positions 2
    Operating Temperature -20°C to +55°C
    Panel Cut Out 16mm
    Protection Level IP65
    Switch Operation On-(On)
    Terminal Type Solder
    Voltage Rating 250VAC
