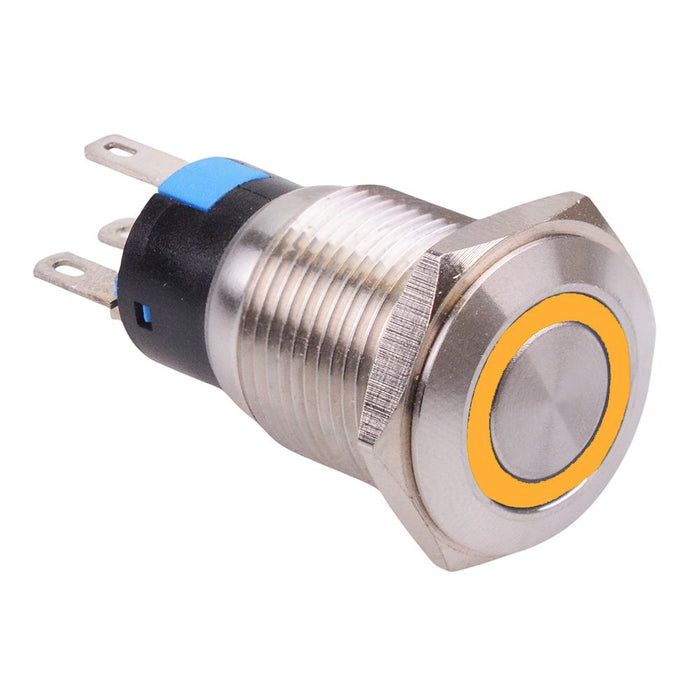

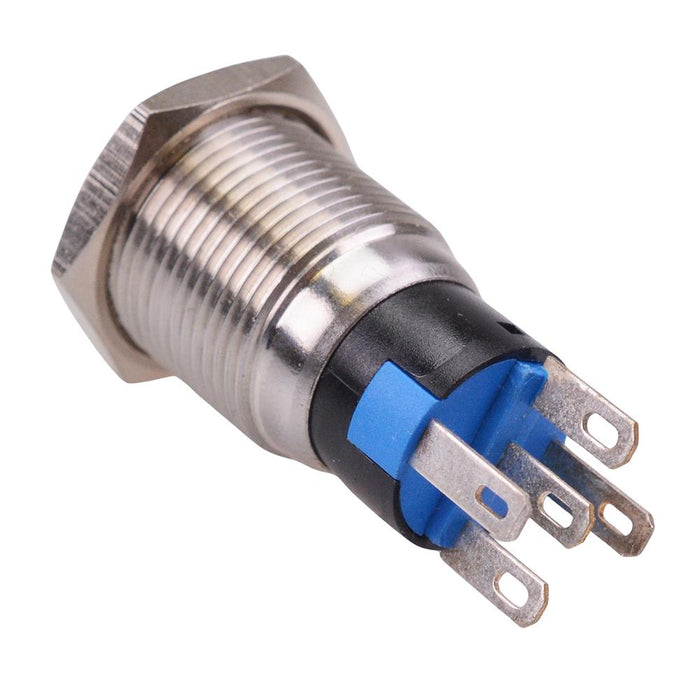

Yellow LED 16mm Latching Vandal Resistant Switch 3A SPDT

by Langir
SKU 550463

MPN: L16FZ1SRY12V

Availability:
27 in stock
Original price £7.32 - Original price £7.32
Original price
£7.32 Inc VAT
£7.32 - £7.32
Current price £7.32 Inc VAT
Vandal resistant switch with a stainless steel construction LED ring illumination. Featuring a flush operating button, suitable for applications where an attractive tamper proof switch is required.

  • Latching action
  • SPDT NO/NC contact configuration
  • Yellow LED 12V illumination
  • Stainless steel construction
  • 16mm panel cut-out
  • 3A 250VAC rating
  • Specification
    Actuation Latching
    Back order lead time 45 Days
    Colour Yellow
    Contact configuration SPDT
    Contact rating 3A 250VAC
    Current rating 3A
    Electrical life 50,000+ Cycles
    Illuminated Yes
    Illumination colour Yellow
    Illumination voltage 12VDC
    Material Stainless Steel
    Mounting style Panel
    Number of positions 2
    Operating temperature -20°C to +55°C
    Panel cut out 16mm
    Protection level IP65
    Switch operation On-On
    Terminal type Solder
    Voltage rating 250VAC
