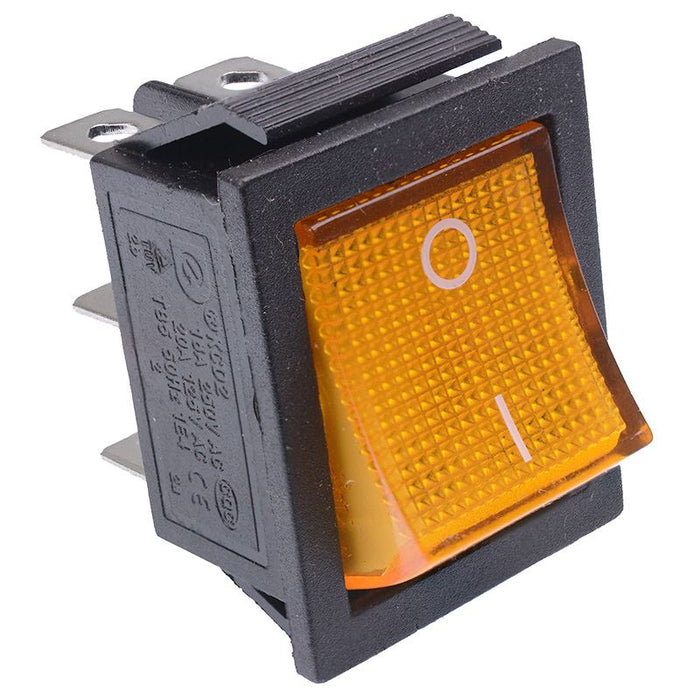

Yellow illuminated On-On Rectangle Rocker Switch 220V DPDT
SKU 551801
MPN: 551801
Availability:
326 in stock
Original price
£0.72
-
Original price
£0.72
Original price
£0.72
Inc VAT
£0.72
-
£0.72
Current price
£0.72
Inc VAT
illuminated rectangle rocker switch with DPDT contacts suitable for domestic, industrial and commercial applications.
Yellow illumination On-on action DPDT contacts 220VAC illumination 6*6.3mm quick connect terminals 28.5 x 21.5mm panel cut-out Maximum current: 15A Maximum voltage: 250VAC Dimensions: 35.5 x 31 x 25.3mm (Height x Length x Width)
Specification
| Actuation | Latching |
| Back order lead time | 40 Days |
| Colour | Yellow |
| Contact configuration | DPDT |
| Contact rating | 15A 250VAC |
| Current rating | 15A |
| Electrical life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination colour | Yellow |
| Illumination voltage | 220VAC |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 28.5 x 21.5mm |
| Switch operation | On-On |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
