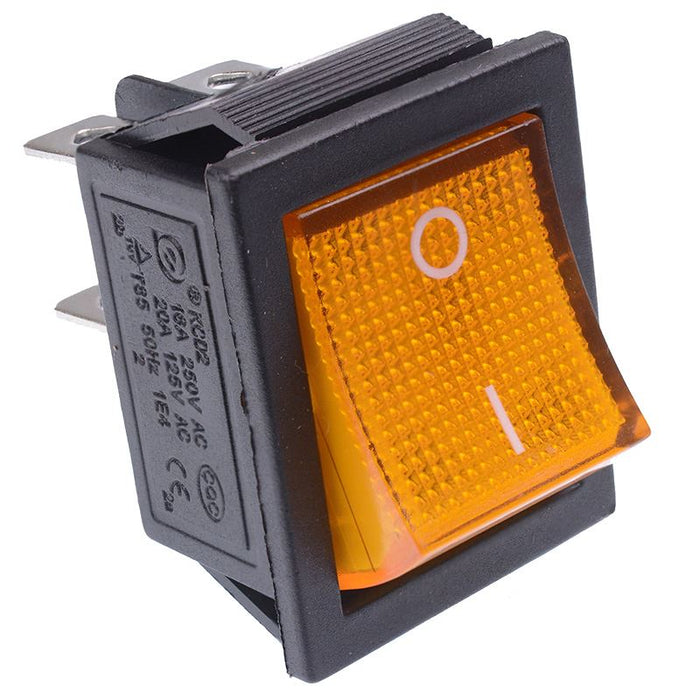

Yellow illuminated Large On-Off Rocker Switch 230V

SKU 131016

MPN: 131016

Availability:
55 in stock
Original price £0.87 - Original price £0.87
Original price
£0.87 Inc VAT
£0.87 - £0.87
Current price £0.87 Inc VAT
illuminated rectangle rocker switch with DPST contacts suitable for applications where a higher rated switch is required.

  • On-off action
  • DPST contacts
  • 230VAC illumination
  • 6.3mm quick connect terminals
  • 28.5 x 21.5mm panel cut-out
  • Maximum current: 15A
  • Maximum voltage: 250VAC
  • Dimensions: 35.5 x 31 x 25.3mm (Height x Length x Width)
  • Specification
    Actuation Latching
    Back order lead time 40 Days
    Colour Yellow
    Contact configuration DPST
    Contact rating 15A 250VAC
    Current rating 15A
    Illuminated Yes
    Illumination colour Yellow
    Illumination voltage 230VAC
    Mounting style Panel
    Number of poles 2
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 28.5 x 21.5mm
    Switch operation On-Off
    Terminal type Quick Connect
    Voltage rating 250VAC
