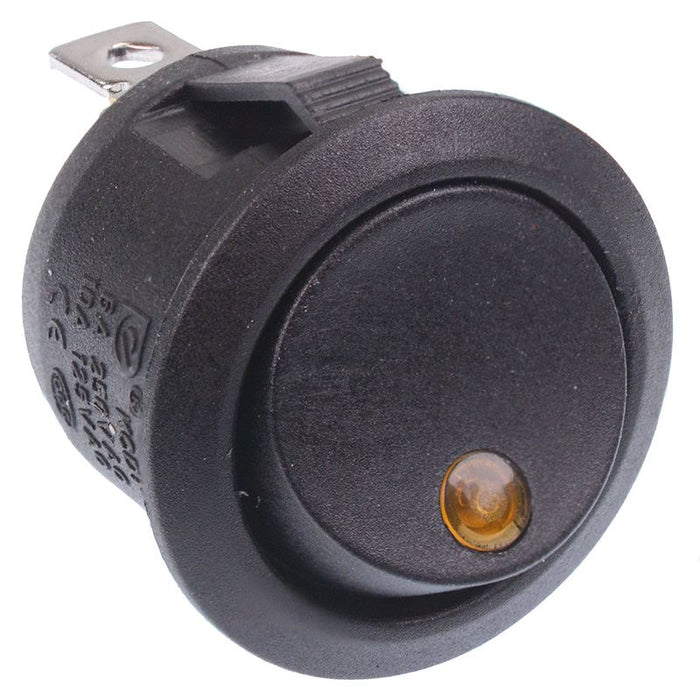

Yellow illuminated Dot On-Off Round Rocker Switch 12V SPST
SKU 130015
MPN: 130015
Availability:
175 in stock
Original price
£0.77
-
Original price
£0.77
Original price
£0.77
Inc VAT
£0.77
-
£0.77
Current price
£0.77
Inc VAT
illuminated circular rocker switch with SPST contacts and on-off action. The switch is designed for snap-in mounting and is suitable for a wide range of applications.
On-off action SPST contacts 12V illumination 4.8mm quick connect terminals Panel cut-out: 20mm Dimensions: 29.2 x 23mm (Height x Diameter) Maximum current: 6A Maximum voltage: 250VAC
Specification
| Actuation | Latching |
| Back order lead time | 40 Days |
| Colour | Yellow |
| Contact configuration | SPST |
| Contact rating | 6A 250VAC |
| Current rating | 6A |
| Electrical life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination colour | Yellow |
| Illumination voltage | 12VDC |
| Material | PA66 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 20mm |
| Switch operation | On-Off |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
