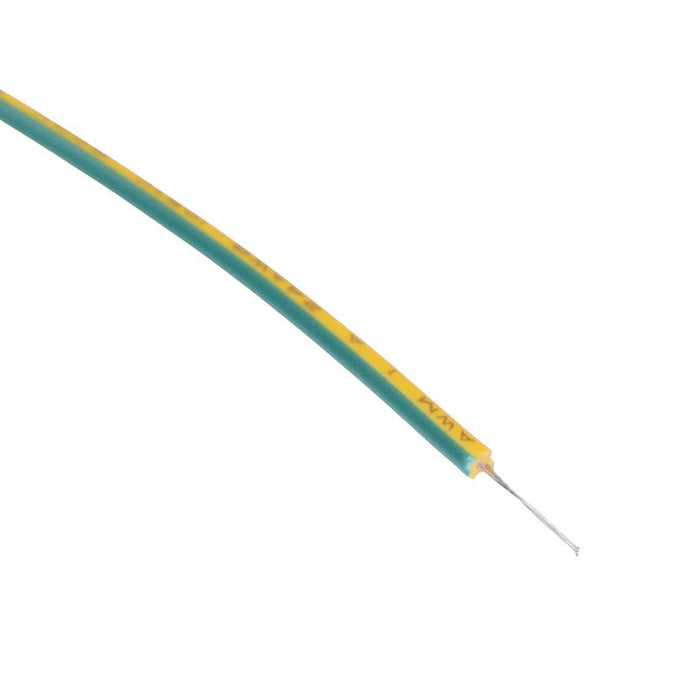

Yellow / Green UL1015 24AWG 11/0.16mm Tinned Copper Stranded Wire (price per metre)
SKU 484331
MPN: 484331
Availability:
519 in stock
Original price
£0.40
-
Original price
£0.40
Original price
£0.40
£0.40
-
£0.40
Current price
£0.40
Yellow / Green 24AWG multi-stranded copper wire featuring PVC insulation manufactured to UL1015 specification. The PVC insulation provides excellent resistance to oil, petrol, diesel and high temperatures. The cable is suitable for automotive and various other applications requiring a high performance wire.
Overall diameter: 2.2mm Wide temperature range Tinned copper conductor Rated voltage: 600V 11/0.16mm copper stranding Cut to length in pieces up to 25 metres
Specification
| Back Order Lead Time | 120 Days |
| Colour | Yellow / Green |
| Conductor Cross Section | 0.20mm² |
| Conductor Diameter | 0.61mm |
| Conductor Material | Tinned Copper |
| Conductor Stranding | 11/0.16mm |
| Current Rating | 4A |
| Insulation Material | PVC |
| Insulation Thickness | 0.80mm |
| Operating Temperature | -30°C to 105°C |
| Overall Diameter | 2.2mm |
| Voltage Rating | 600V |
| Wire Gauge | 24AWG |
