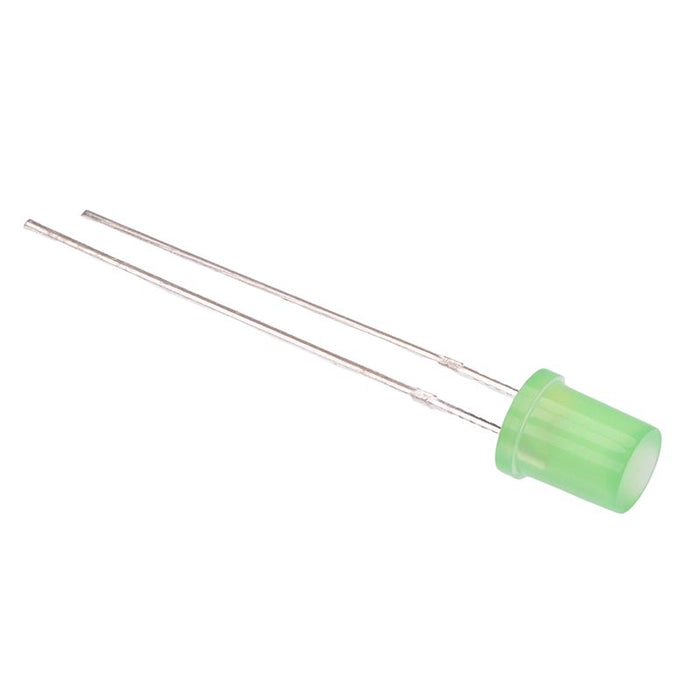

Yellow Green 5mm Concave Diffused LED 6mcd 150°

SKU 484952

MPN: LL-503GD2K-1A

500 in stock
Original price £0.14 - Original price £0.14
Original price
£0.14 Inc VAT
£0.14 - £0.14
Current price £0.14 Inc VAT
Yellow green 5mm concave LED featuring a colour diffused package and 6mcd luminous intensity suitable for applications including use as indicators, backlighting and illumination.

  • Luminous intensity: 6mcd
  • Wavelength: 570nm
  • Viewing angle: 150°
  • Forward voltage: 2.2V
  • Forward current: 30mA
  • Suitable for through-hole mounting
  • Cathode identified as the shorter lead
  • 2.54mm lead pitch
  • Colour diffused lens
  • Excellent weather resistance
  • Long lifespan
  • Specification
    Back order lead time 5 Days
    Colour Yellow Green
    Diameter 5mm
    Forward current 30mA
    Forward voltage 2.2V
    Lens colour Green
    Lens shape Concave
    Luminous intensity 6mcd
    Mode Constant
    Moq 5
    Mounting style Through Hole
    Number of pins 2
    Operating temperature -40°C to +85°C
    Package 5mm
    Packaging Bulk
    Power dissipation 78mW
    Viewing angle 150°
    Wavelength 570nm
