Yellow 3mm Multi-Voltage (3-15V) LED Kit - Box of 50

SKU 486690

MPN: OKLEDT3050Y5

Availability:
Out of stock
Sold out
Original price £6.49 - Original price £6.49
Original price
£6.49 Inc VAT
£6.49 - £6.49
Current price £6.49 Inc VAT

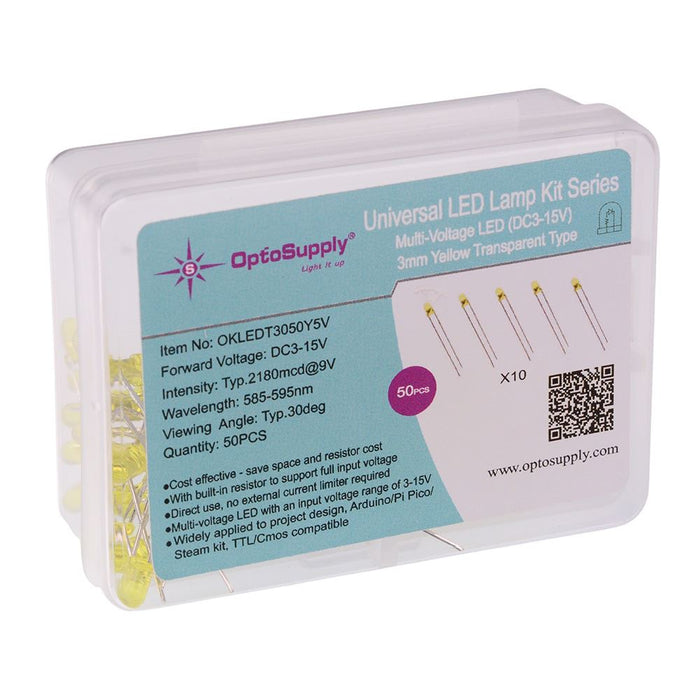

Yellow 3mm universal LED lamps featuring a yellow lens complete in a handy box. The LEDs feature a built-in resistor allowing them to be used with a 3-15V input voltage range, not only does this save on cost but also space and time by not having to install an additional resistor. The LEDs are widely used for indication applications and with microcontrollers including Arduino, Raspberry Pi etc.

  • Box of 50 LEDs
  • Yellow transparent lens
  • 3mm package with 2.54mm lead pitch
  • Input voltage: 3-15VDC
  • Built-in resistor
  • Viewing angle: 30deg
  • Wavelength: 585-595nm
  • Luminous intensity: 2180mcd @ 9V
  • Specification
    Back order lead time 45 Days
    Colour Yellow
    Diameter 3mm
    Forward current 8mA
    Forward voltage 3-15V
    Lens colour Yellow
    Lens shape Round
    Luminous intensity 2180mcd
    Mode Constant
    Mounting style Through Hole
    Number of pins 2
    Operating temperature -30°C to 85°C
    Package 3mm
    Packaging Box
    Viewing angle 30°
    Wavelength 585-595nm
