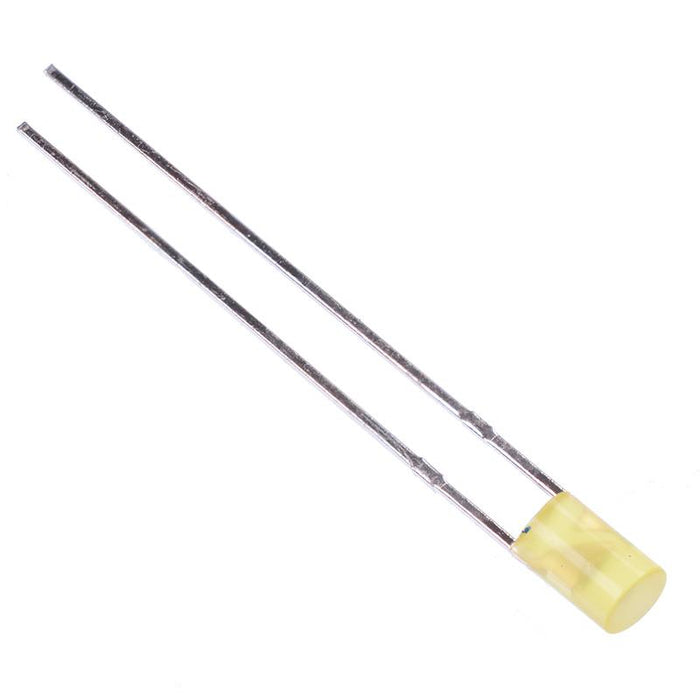

Yellow 3mm Diffused Cylindrical Flat Top LED 120mcd
SKU 484754
MPN: 484754
Availability:
161 in stock
Original price
£0.13
-
Original price
£0.13
Original price
£0.13
£0.13
-
£0.13
Current price
£0.13
Yelow 3mm cylindrical LED with a diffused lens, featuring a low power consumption and a long lifespan. The LEDs are suitable for a variety of applications including indicators, backlighting and signs.
Suitable for through hole mounting Cathode identified as the shorter lead Diffused lens Luminous intensity: 120mcd Forward voltage: 3.2V Forward current: 25mA Wavelength: 590nm
Specification
| Back Order Lead Time | 40 Days |
| Colour | Yellow |
| Diameter | 3mm |
| Forward Current | 25mA |
| Forward Voltage | 2.0V |
| Lens Colour | Yellow |
| Lens Shape | Cylindrical |
| Luminous Intensity | 120mcd |
| Mode | Constant |
| MOQ | 5 |
| Mounting Style | Through Hole |
| Number of Pins | 2 |
| Operating Temperature | -40°C to +80°C |
| Package | 3mm |
| Packaging | Bulk |
| Power Dissipation | 60mW |
| Viewing Angle | 130° |
| Wavelength | 590nm |
