Yellow 3mm Concave Diffused LED 150mcd 120°

SKU 484943

MPN: OSY5JA3PC4A

Availability:
375 in stock
Original price £0.23 - Original price £0.23
Original price
£0.23 Inc VAT
£0.23 - £0.23
Current price £0.23 Inc VAT

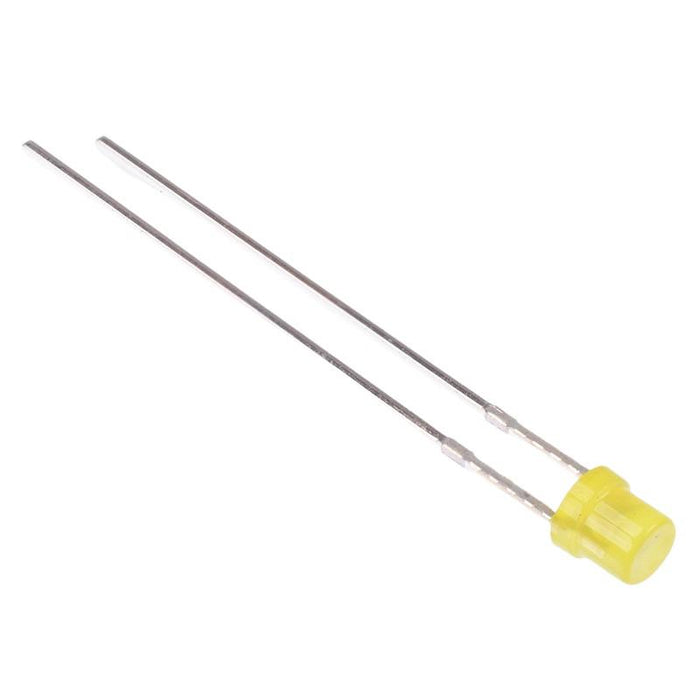

Yellow 3mm concave LED featuring a colour diffused package and 150mcd luminous intensity suitable for applications including use as indicators, backlighting and illumination.

  • Luminous intensity: 150mcd
  • Wavelength: 590nm
  • Viewing angle: 120°
  • Forward voltage: 2.1V
  • Forward current: 30mA
  • Suitable for through-hole mounting
  • Cathode identified as the shorter lead
  • 2.54mm lead pitch
  • Colour diffused lens
  • Excellent weather resistance
  • Long lifespan
  • Specification
    Back order lead time 5 Days
    Colour Yellow
    Diameter 3mm
    Forward current 30mA
    Forward voltage 2.1V
    Lens colour Red
    Lens shape Concave
    Luminous intensity 150mcd
    Mode Constant
    Moq 5
    Mounting style Through Hole
    Number of pins 2
    Operating temperature -30°C to +85°C
    Package 3mm
    Packaging Bulk
    Power dissipation 78mW
    Viewing angle 120°
    Wavelength 590nm
