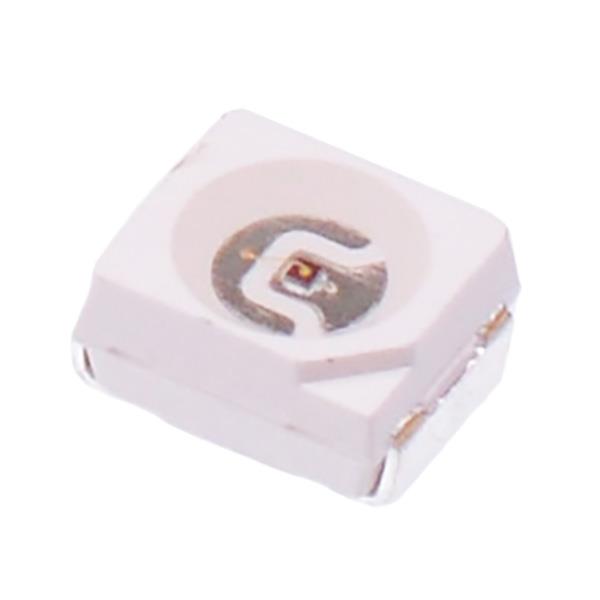

Yellow 3528 SMD PLCC-2 LED Water Clear 600mcd 120°
by Luckylight
SKU 490461
MPN: R3528YC-3C
Availability:
2910 in stock
Original price
£0.13
-
Original price
£0.13
Original price
£0.13
£0.13
£0.13
-
£0.13
Current price
£0.13
Yellow surface mount LED housed in a 3528 package featuring 600mcd luminous intensity, suitable for a wide range of applications including automotive, backlighting, signage and indication.
3528 PLCC-2 package Luminous intensity: 600mcd 120° viewing angle Wavelength: 590nm Forward voltage: 2.0V Forward current: 25mA Clear lens UV resistant Supplied on tape packaging Dimensions: 3.5 x 2.8 x 1.9mm
Specification
| Back Order Lead Time | 45 |
| Colour | Yellow |
| Forward Current | 25mA |
| Forward Voltage | 2.0V |
| Height | 1.9mm |
| Length | 3.5mm |
| Lens Colour | Clear |
| Luminous Intensity | 600mcd |
| MOQ | 10 |
| Mounting Style | Surface Mount |
| Number of Pins | 2 |
| Operating Temperature | -40°C to 80°C |
| Package | 3528 |
| Packaging | Cut-Tape |
| Power Dissipation | 60mW |
| Viewing Angle | 120° |
| Wavelength | 590nm |
| Width | 2.8mm |
