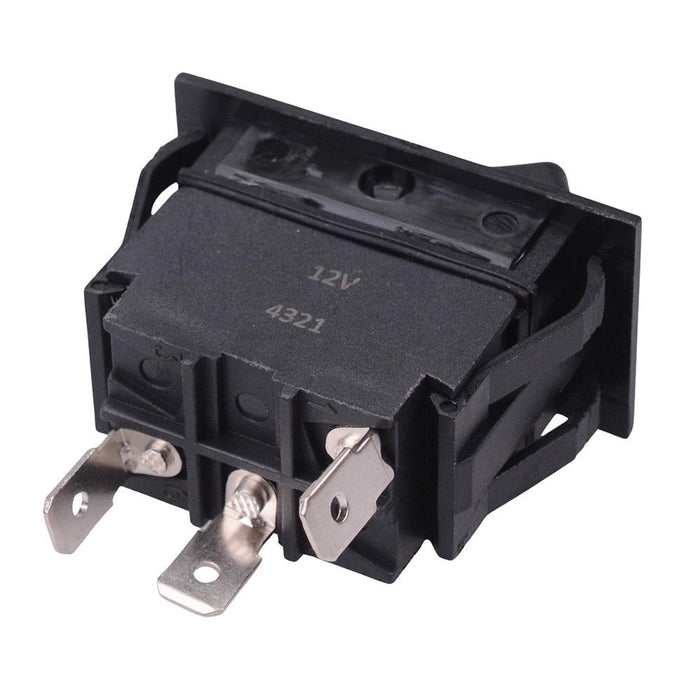

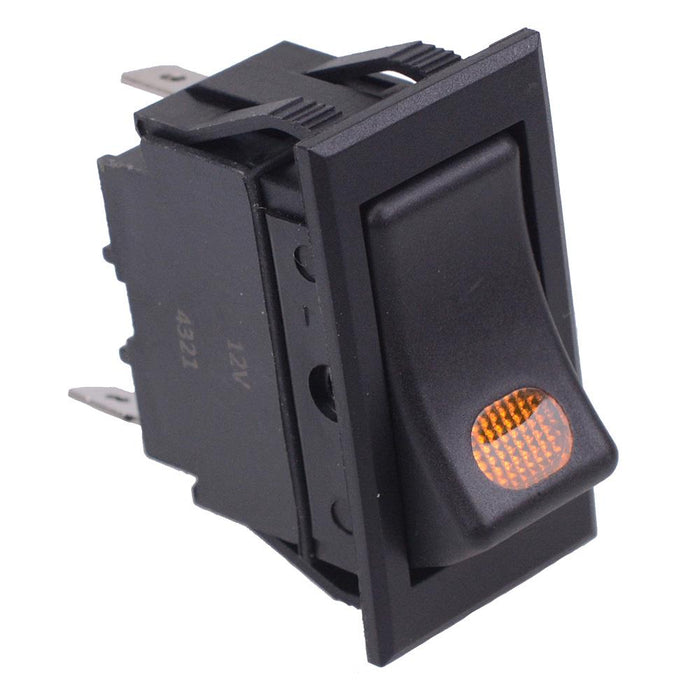

Yellow 12V LED Rectangle Rocker Switch SPST 20A R13-220BA-01
by SCI
SKU 491438
MPN: R13-220BA-01-BBY
Availability:
10 in stock
Original price
£2.76
-
Original price
£2.76
Original price
£2.76
£2.76
-
£2.76
Current price
£2.76
R13-220 rectangle rocker switch featuring yellow 12V illumination and SPDT contacts. The switch requires a 37.3 x 21.2mm panel cut-out and features 6.3mm quick connect terminals. The switch is rated up to 20A and is suitable for a wide range of DC automotive applications.
Function: On-Off Contacts: SPST Yellow 12V neon illumination Panel cut-out: 37.3 x 21.2mm Panel thickness: 0.75-3mm Rating: 20A 12VDC, 10A 24VDC 6.3mm quick connect terminals Dimensions: 44.0 x 24.5 x 48.5mm (length x width x height)
Specification
| Actuation | Latching |
| Back Order Lead Time | 150 Days |
| Colour | Yellow |
| Contact Configuration | SPST |
| Contact Rating | 20A 12VDC |
| Current Rating | 20A |
| Illuminated | Yes |
| Illumination Colour | Yellow |
| Illumination Voltage | 12VDC |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Panel Cut Out | 37.3 x 21.2mm |
| Panel Thickness | 0.75-3mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 12VDC |
