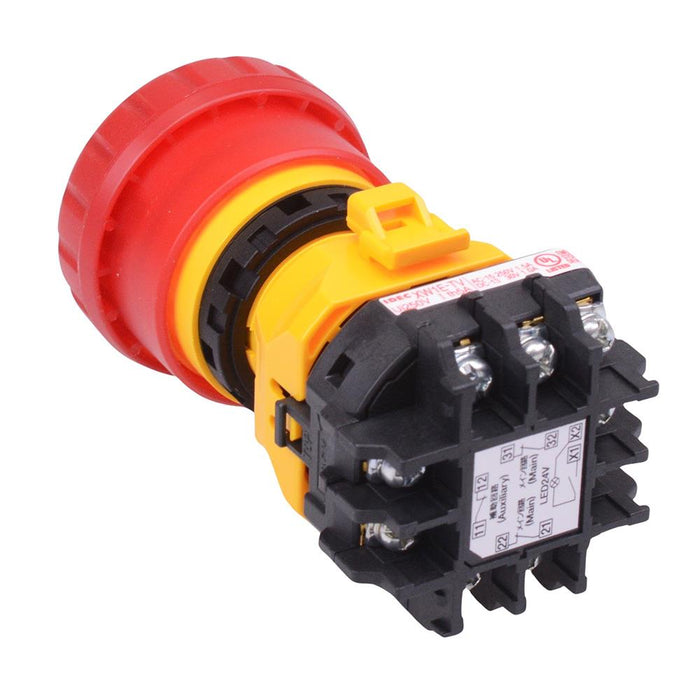

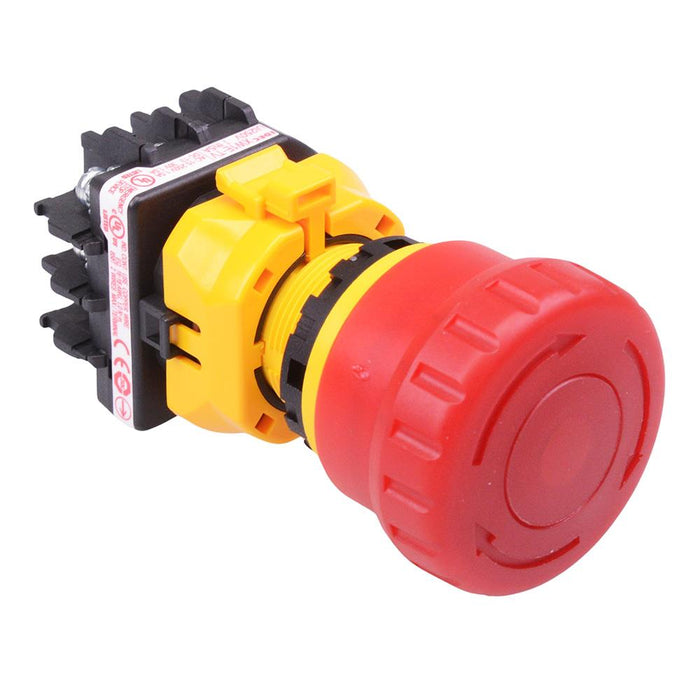

XW1E-TV403Q4MR illuminated 22mm Emergency Stop Switch 3NC IDEC
by IDEC
SKU 489678
MPN: XW1E-TV403Q4MR
Availability:
10 in stock
Original price
£55.41
-
Original price
£55.41
Original price
£55.41
Inc VAT
£55.41
-
£55.41
Current price
£55.41
Inc VAT
The XW1E-TV403Q4MR is a 22mm e-stop switch featuring LED illumination and IDEC's reverse energy structure. The switch features the highest level of safety with "Safe Break Action" ensuring the safety of operator and system when the switch is damaged due to excessive shocks. The XW series is designed for a wide range of applications including robotics, AGVs, factory automation, manufacturing and other industrial uses.
Fail safe design Contacts: 3NC illumination rating: 24VAC/DC Rated current: 5A Rated insulation voltage: 250V Panel cut-out: 22.3mm Panel thickness: 1-4mm Behind panel depth: 46.4mm Head diameter: 40mm Screw terminals UL c-UL listed, EN compliant
Specification
| Actuation | Twist Release |
| Back order lead time | 10 Days |
| Colour | Red |
| Contact configuration | 3NC |
| Contact material | Gold Plated Silver |
| Current rating | 5A |
| Electrical life | 100,000 Cycles |
| Head type | Mushroom |
| Illuminated | Yes |
| Illumination colour | Red |
| Illumination voltage | 24V |
| Moq | 1 |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -25°C to +55°C |
| Panel cut out | 22.3mm |
| Product series | XW |
| Protection level | IP65 |
| Terminal type | Screw |
| Voltage rating | 250V |
