XW1E-LV4TG13Q4MFR 24V illuminated 22mm Emergency Stop Switch 1NO-3NC IDEC
by IDEC
SKU 492276
MPN: XW1E-LV4TG13Q4MFR
Availability:
20 in stock
Original price
£50.89
-
Original price
£50.89
Original price
£50.89
£50.89
-
£50.89
Current price
£50.89

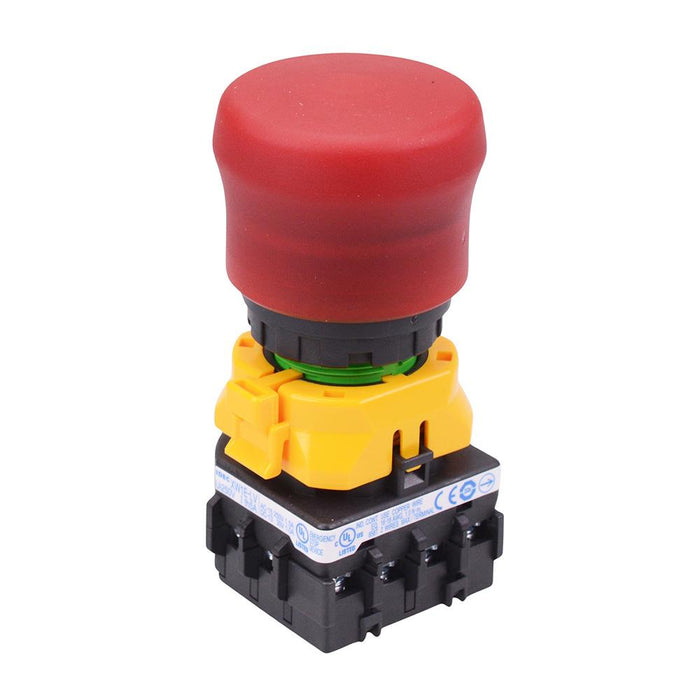

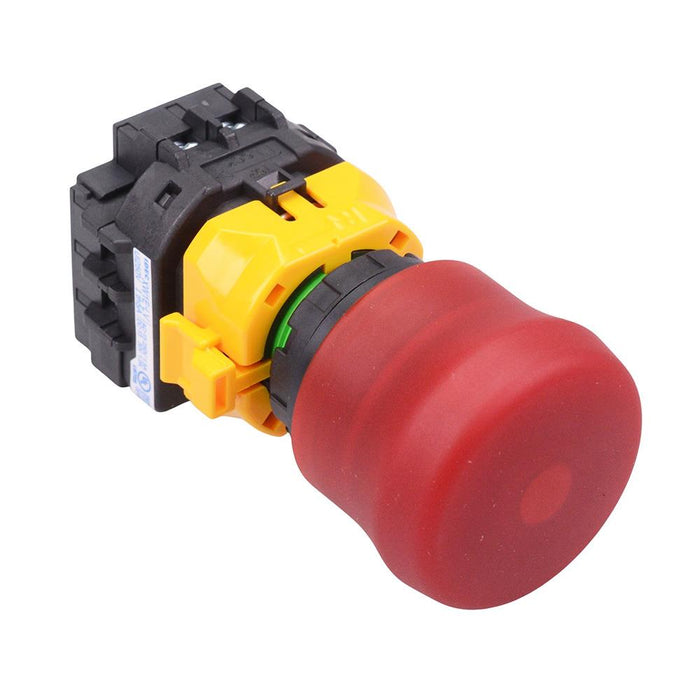

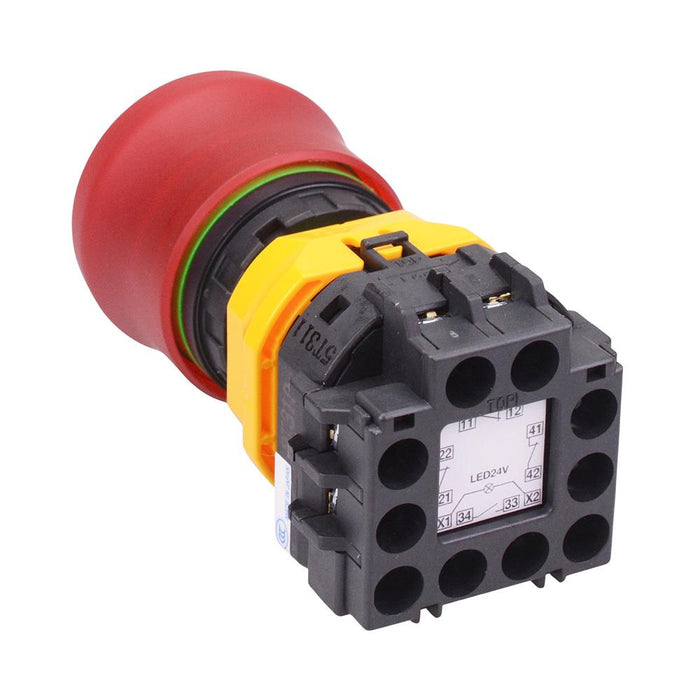

The XW1E-LV4TG13Q4MFR 24V illuminated is a 22mm E-stop switch manufactured by IDEC, featuring a 38mm mushroom head and 1NO-3NC contacts. The switch features a fail-safe design with safe break technology which ensures all NC contacts are open if the contact block is separated. The switch meets major certifications and is suitable for a wide range of safety applications requiring a high quality emergency stop switch.
IDEC X-series switches use "Safe Break Action," a unique reverse energy structure that disconnects normally closed contacts, guaranteeing stuff-off even if the emergency switch is damaged or the contact blocks separate.
1NO-3NC contacts 22.3mm panel hole diameter 24V illumination IP65 protection level Screw terminals 38mm mushroom head 5A 250V rating UL, c-UL listed, TUV, EN compliant
IDEC X-series switches use "Safe Break Action," a unique reverse energy structure that disconnects normally closed contacts, guaranteeing stuff-off even if the emergency switch is damaged or the contact blocks separate.
Specification
| Actuation | Twist Release |
| Back Order Lead Time | 7 Days |
| Colour | Red |
| Contact Configuration | 1NO-3NC |
| Contact Material | Gold Plated Silver |
| Current Rating | 5A |
| Electrical Life | 100,000 Cycles |
| Head Type | Mushroom |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 24V |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +55°C |
| Panel Cut Out | 22.3mm |
| Panel Thickness | 0.8-6mm |
| Product Series | XW |
| Protection Level | IP65 |
| Terminal Type | Screw |
| Voltage Rating | 250V |
