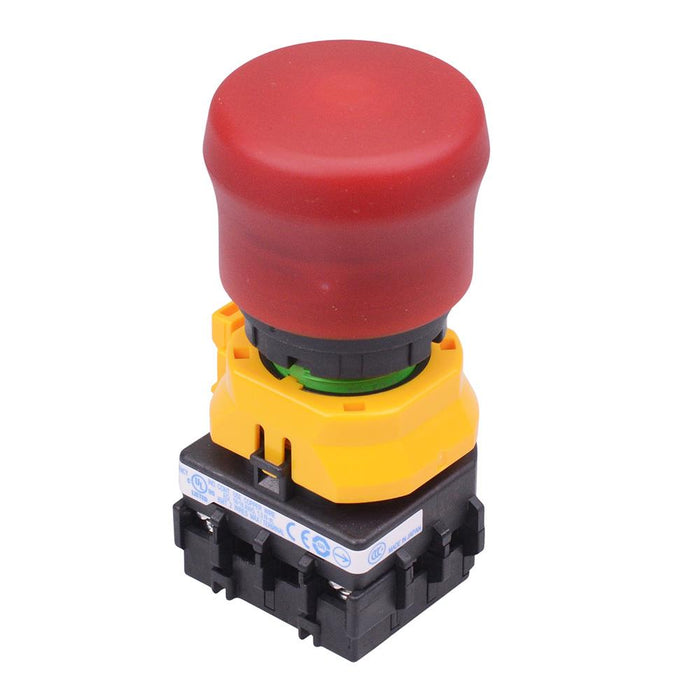

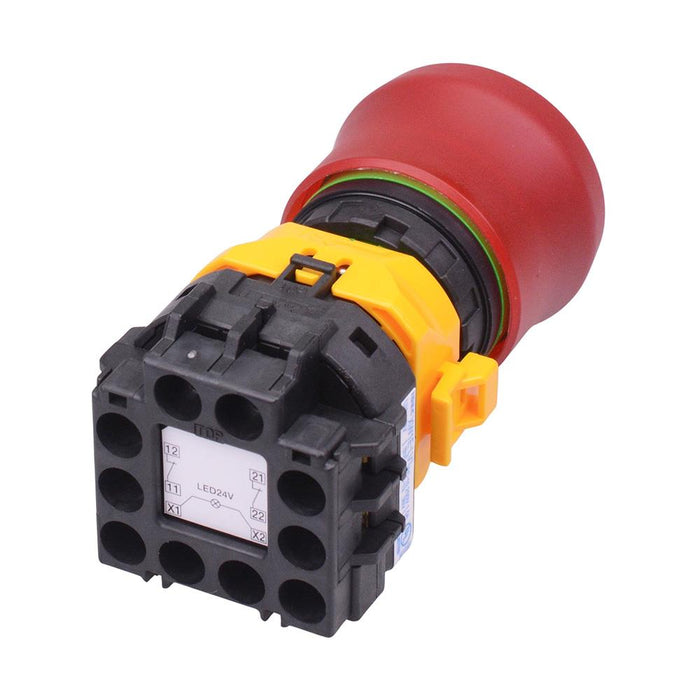

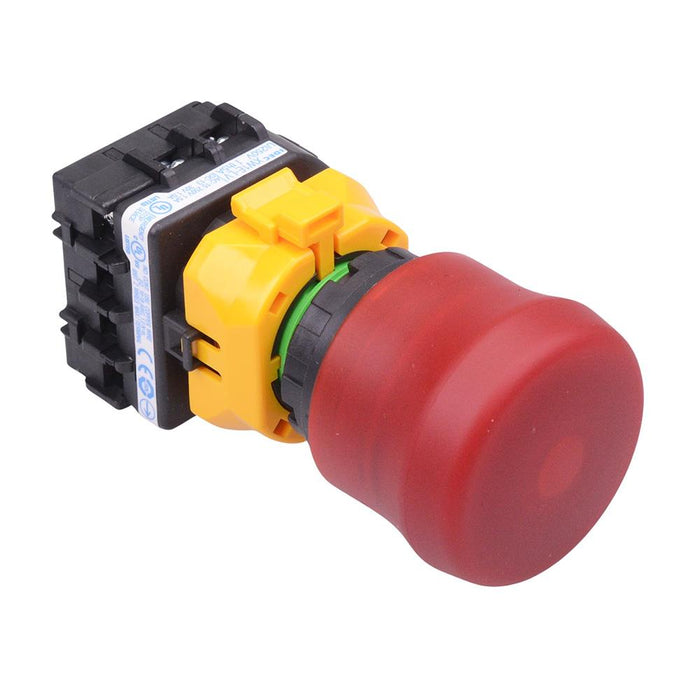

XW1E-LV4TG02Q4MFR 24V illuminated 22mm Emergency Stop Switch 2NC IDEC
by IDEC
SKU 492784
MPN: XW1E-LV4TG02Q4MFR
Availability:
58 in stock
Original price
£43.86
-
Original price
£43.86
Original price
£43.86
£46.05
£46.05
-
£46.05
Current price
£46.05
The XW1E-LV4TG02Q4MFR 24V illuminated is a 22mm E-stop switch manufactured by IDEC, featuring a 38mm mushroom head and 2NC contacts. The switch features a fail-safe design with safe break technology which ensures all NC contacts are open if the contact block is separated. The switch meets major certifications and is suitable for a wide range of safety applications requiring a high quality emergency stop switch.
IDEC X-series switches use "Safe Break Action," a unique reverse energy structure that disconnects normally closed contacts, guaranteeing stuff-off even if the emergency switch is damaged or the contact blocks separate.
2NC contacts 22.3mm panel hole diameter 24V illumination IP65 protection level Screw terminals 38mm mushroom head 5A 250V rating UL, c-UL listed, TUV, EN compliant
IDEC X-series switches use "Safe Break Action," a unique reverse energy structure that disconnects normally closed contacts, guaranteeing stuff-off even if the emergency switch is damaged or the contact blocks separate.
Specification
| Actuation | Twist Release |
| Back Order Lead Time | 80 Days |
| Colour | Red |
| Contact Configuration | 2NC |
| Contact Material | Gold Plated Silver |
| Current Rating | 5A |
| Electrical Life | 100,000 Cycles |
| Head Type | Mushroom |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 24V |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +55°C |
| Panel Cut Out | 22.3mm |
| Panel Thickness | 0.8-6mm |
| Product Series | XW |
| Protection Level | IP65 |
| Terminal Type | Screw |
| Voltage Rating | 250V |
