XT120-M Male 2+2 High Current Connector 60A AMASS
by AMASS
SKU 490417
MPN: XT120(2+2)-M.S.Y
Availability:
80 in stock
Original price
£3.15
-
Original price
£3.15
Original price
£3.15
£3.15
-
£3.15
Current price
£3.15

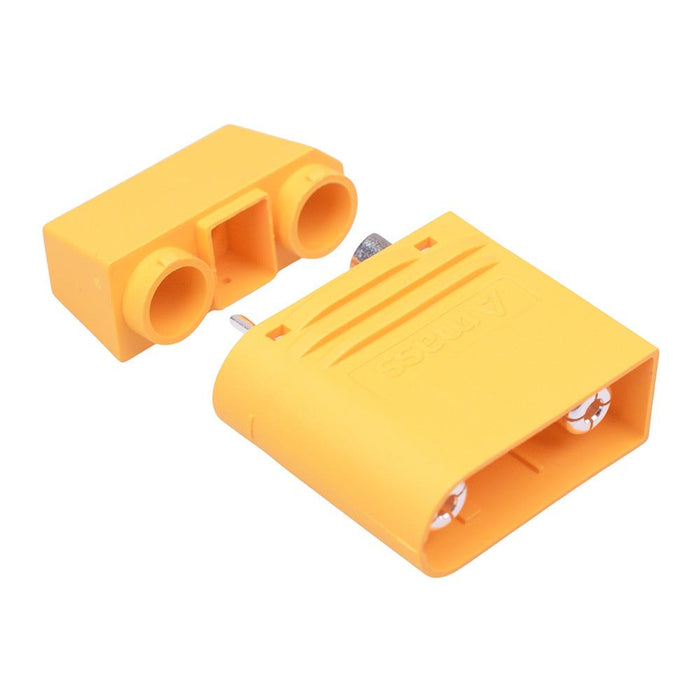

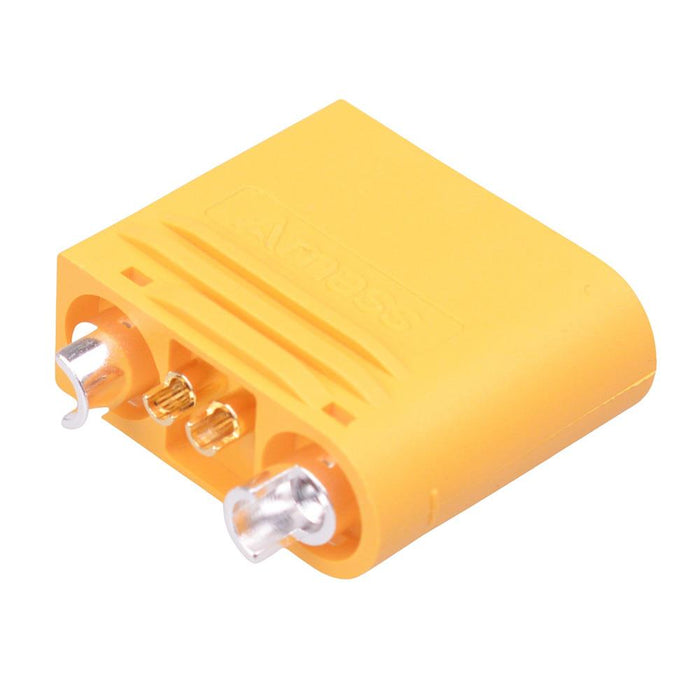

The XT120-M is a male 2+2 pin high current connector by AMASS, featuring a high temperature nylon housing and solder contacts. The connectors are rated up to 60A and suitable for applications including drones, RC vehicles, UAV etc.
2 pins + 2 signal pins Housing material: nylon Contact material: silver and gold plated Current rating: 60A Voltage rating: 500VDC Wire size: 12-8AWG Easy to solder Dimensions: 38.0 x 30.4 x 13.4mm (length x width x height)
Specification
| Back Order Lead Time | 120 Days |
| Colour | Yellow |
| Current Rating | 60A |
| Gender | Male |
| MOQ | 1 |
| Number of Poles | 2+2 |
| Voltage Rating | 500VDC |
| Wire Gauge | 12-8AWG |
