XT120-F Female 2+2 High Current Connector 60A AMASS
by AMASS
SKU 490418
MPN: XT120(2+2)-F.S.Y
Availability:
58 in stock
Original price
£2.66
-
Original price
£2.66
Original price
£2.66
£2.66
£2.66
-
£2.66
Current price
£2.66

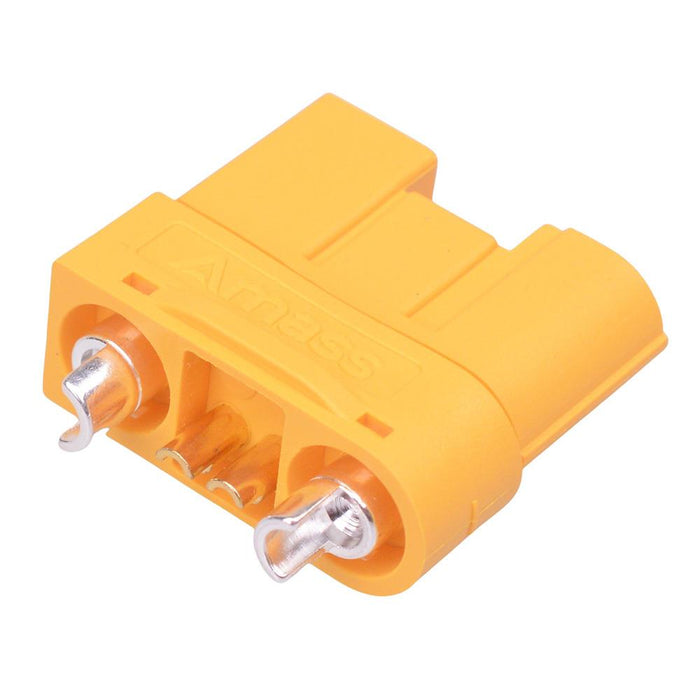

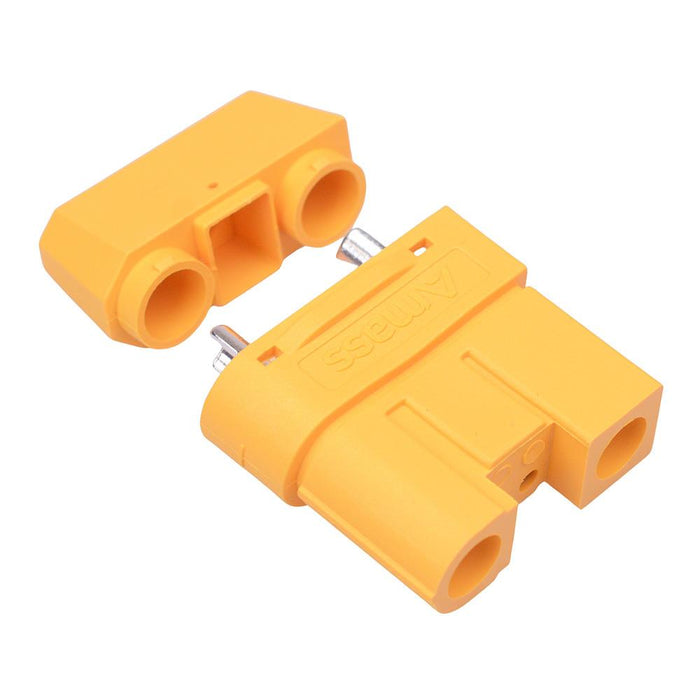

The XT120-F is a female 2+2 pin high current connector by AMASS, featuring a high temperature nylon housing and solder contacts. The connectors are rated up to 60A and suitable for applications including drones, RC vehicles, UAV etc.
2 pins + 2 signal pins Housing material: nylon Contact material: silver and gold plated Current rating: 60A Voltage rating: 500VDC Wire size: 12-8AWG Easy to solder Dimensions: 38.5 x 30.4 x 13.4mm (length x width x height)
Specification
| Back Order Lead Time | 120 Days |
| Colour | Yellow |
| Contact Material | Silver / Gold Plated |
| Contact Resistance | 1.0mΩ |
| Current Rating | 60A |
| Dielectric Withstand Voltage | IP40 |
| Gender | Female |
| Housing Material | Nylon |
| MOQ | 1 |
| Number of Poles | 2+2 |
| Operating Temperature | -20°C to 120°C |
| Termination Method | Solder |
| Voltage Rating | 500VDC |
| Wire Gauge | 12-8AWG |
