XN4E-TL412Q4MR 24V illuminated 30mm Emergency Stop Switch Padlock 1NO-2NC IP65 IDEC
by IDEC
SKU 493234
MPN: XN4E-TL412Q4MR
Availability:
10 in stock
Original price
£111.77
-
Original price
£111.77
Original price
£111.77
£111.77
-
£111.77
Current price
£111.77

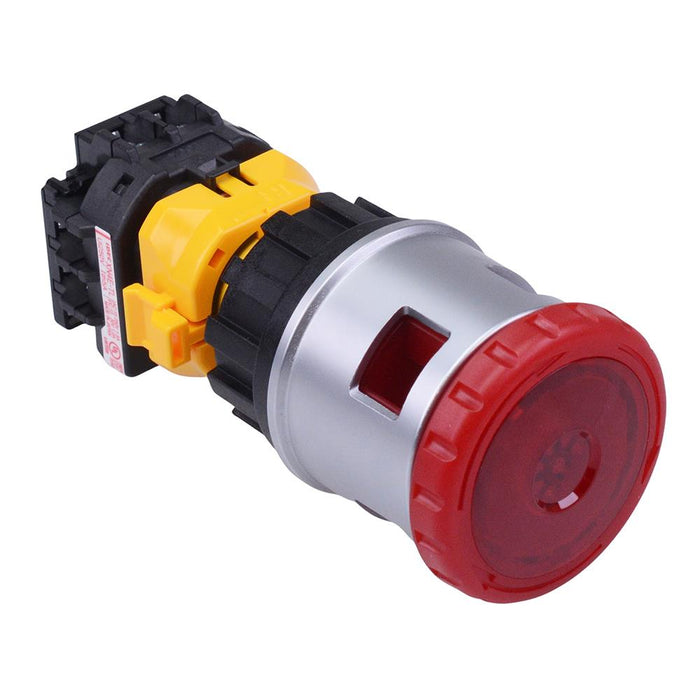

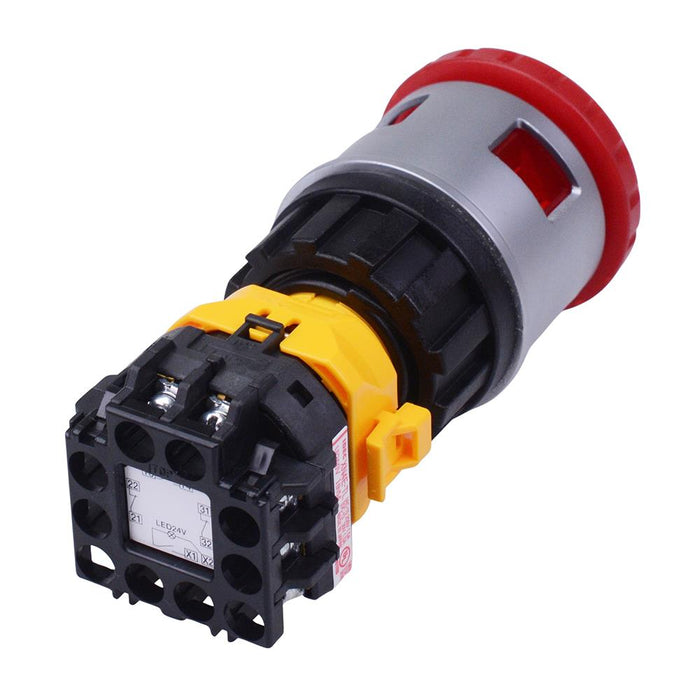

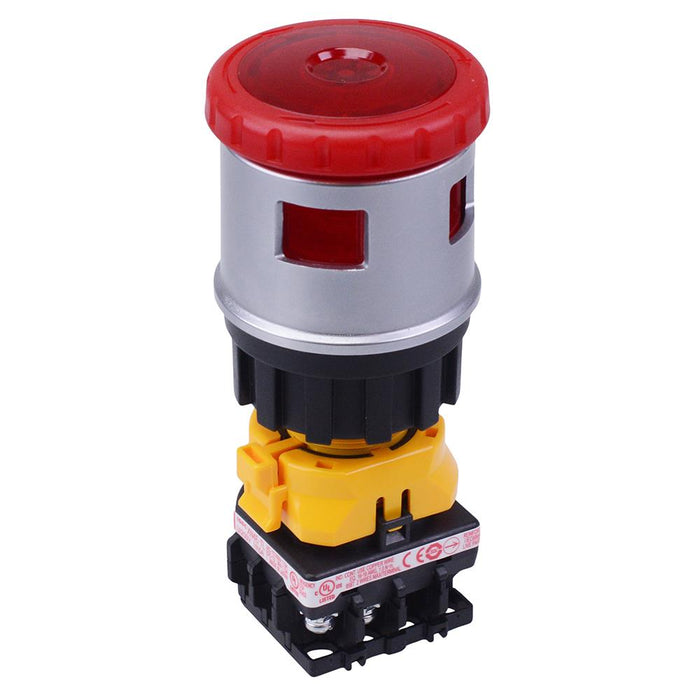

The XN4E-TL412Q4MR is an illuminated 30mm E-stop switch manufactured by IDEC, featuring a 44mm mushroom head and 2NC-1NO contacts. The switch features a fail-safe design with safe break technology which ensures all NC contacts are open if the contact block is separated. The switch is padlockable and is suitable for a wide range of safety applications requiring a high quality emergency stop switch.
IDEC XN series switches use "Safe Break Action," a unique reverse energy structure that disconnects normally closed contacts, guaranteeing stuff-off even if the emergency switch is damaged or the contact blocks separate.
2NC-1NO contacts Push-ON 24V illumination 30mm panel hole diameter Can be used with a padlock IP65 protection level M3 screw terminals 44mm mushroom head 5A 250VAC rating International approvals
IDEC XN series switches use "Safe Break Action," a unique reverse energy structure that disconnects normally closed contacts, guaranteeing stuff-off even if the emergency switch is damaged or the contact blocks separate.
Specification
| Actuation | Twist Release |
| Back Order Lead Time | 126 Days |
| Contact Configuration | 1NO-2NC |
| Contact Material | Gold Plated Silver |
| Contact Rating | 5A 250V |
| Current Rating | 5A |
| Electrical Life | 100,000 Cycles |
| Head Type | Mushroom |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 24V |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +55°C |
| Panel Cut Out | 30.5mm |
| Panel Thickness | 1-6mm |
| Product Series | XN |
| Protection Level | IP65 |
| Terminal Type | Screw |
| Voltage Rating | 250V |
