XA1E-LV3SG02Q4TWR illuminated Unibody 16mm Emergency Stop Switch 2NC IDEC
by IDEC
SKU 489658
MPN: XA1E-LV3SG02Q4TWR
Availability:
Only 5 left!
Original price
£27.95
-
Original price
£27.95
Original price
£27.95
Inc VAT
£27.95
-
£27.95
Current price
£27.95
Inc VAT

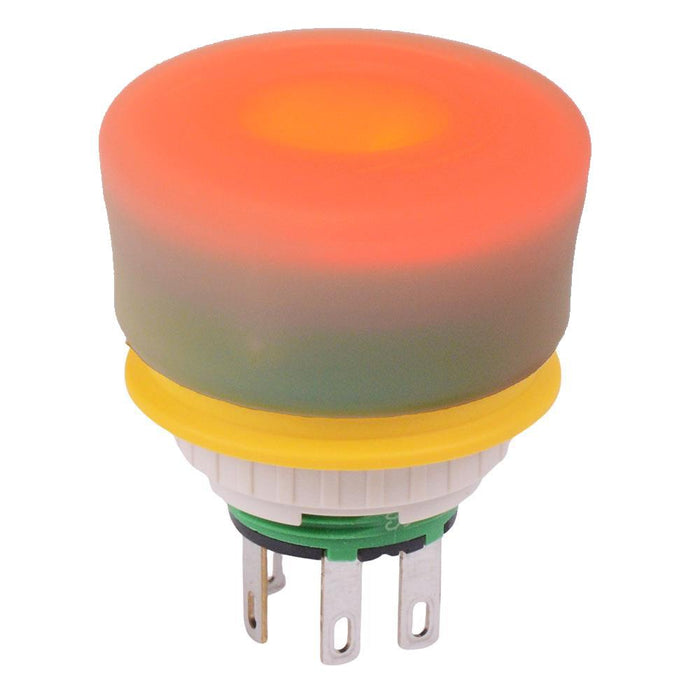

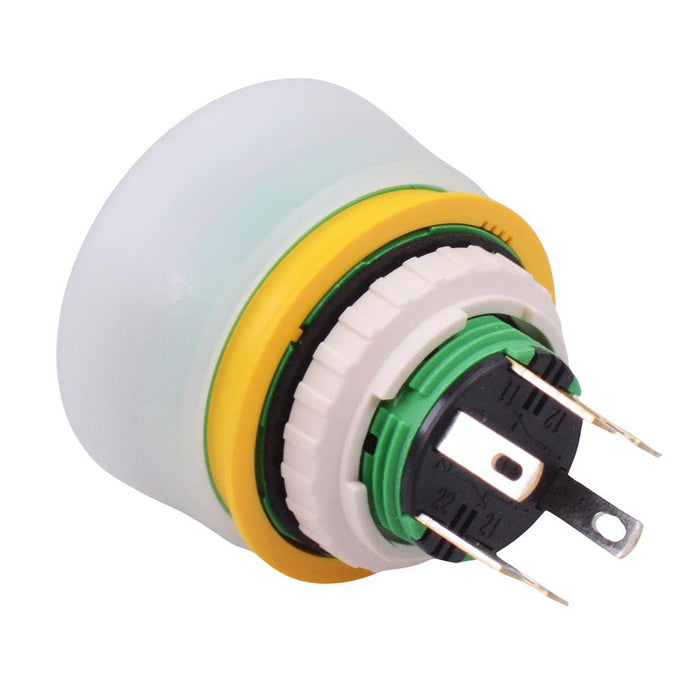

The XA1E-LV3SG02Q4TWR is a short body illuminated e-stop switch compliant with ISO13850, ensuring the highest level of safety and functionality. The XA series features a minimalist installation footprint and unibody construction incorporating IDEC's 3rd generation reverse energy structure. The emergency stop switch features a green status indicator to check the operating status and an escape structure preventing foreign objects form being caught in operation. The switch is certified for outdoor use and is designed for applications including robotics, automated vehicles, EV charging, remote controls and many more.
Fail safe design White button, red illumination Contacts: 2NC Rated current: 3A Rated insulation voltage: 250V illumination rating: 24VAC/DC Panel cut-out: 16.2mm Panel thickness: 0.8-3.7mm Behind panel depth: 17mm Head diameter: 30mm Solder/tab #110 terminals ISO13850:2015 compliant
Specification
Actuation | Twist Release |
Back order lead time | 10 Days |
Colour | Red |
Contact configuration | 2NC |
Current rating | 3A |
Electrical life | 100,000 Cycles |
Head type | Mushroom |
Illuminated | Yes |
Illumination colour | Red |
Illumination voltage | 24V |
Moq | 1 |
Mounting style | Panel |
Number of positions | 2 |
Operating temperature | -25°C to +55°C |
Panel cut out | 16.2mm |
Product series | XA |
Protection level | IP65, IP67, IP69K |
Terminal type | Quick Connect |
Voltage rating | 250V |
