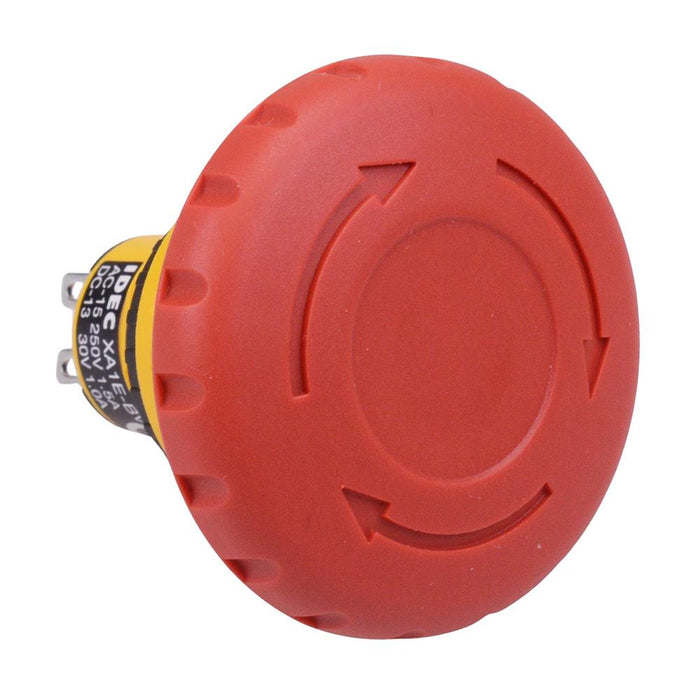

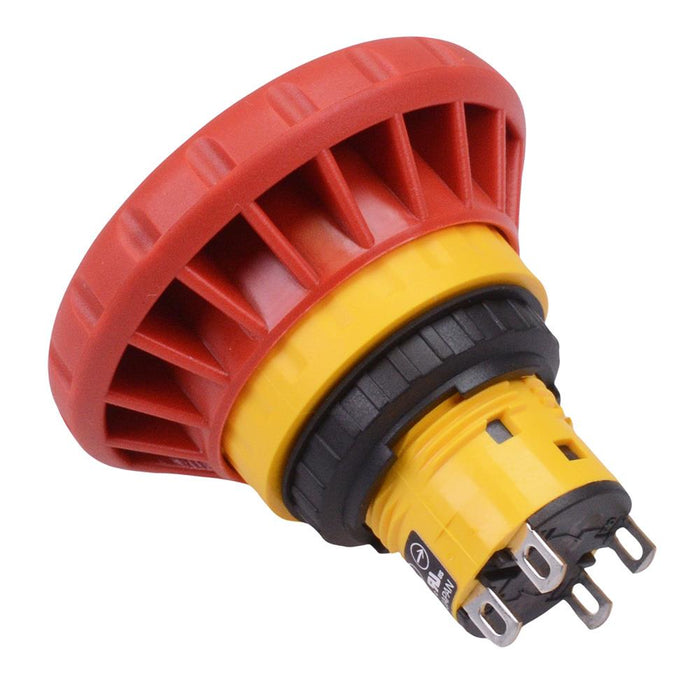

XA1E-BV4U02R Unibody 16mm Emergency Stop Switch 40mm Mushroom 2NC IP65 IDEC
by IDEC
SKU 489681
MPN: XA1E-BV4U02R
Availability:
10 in stock
Original price
£34.02
-
Original price
£34.02
Original price
£34.02
Inc VAT
£34.02
-
£34.02
Current price
£34.02
Inc VAT
The XA1E-BV4U02R is a 16mm e-stop switch featuring unibody design and shallow behind panel depth. The switch features the highest level of safety with "Safe Break Action" ensuring the safety of operator and system when the switch is damaged due to excessive shocks. The XA series is designed for a wide range of applications including robotics, AGVs, factory automation, manufacturing and other industrial uses.
Fail safe design Contacts: 2NC Rated current: 5A Rated insulation voltage: 250V Panel cut-out: 16.2mm Panel thickness: 0.8-4.5mm Behind panel depth: 19.5mm Head diameter: 40mm Solder terminals UL, c-UL recognized. EN compliant
Specification
| Actuation | Twist Release |
| Back order lead time | 10 Days |
| Colour | Red |
| Contact configuration | 2NC |
| Contact material | Gold Plated |
| Current rating | 5A |
| Electrical life | 100,000 Cycles |
| Head type | Mushroom |
| Illuminated | No |
| Moq | 1 |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -25°C to +60°C |
| Panel cut out | 16.2mm |
| Product series | XA |
| Protection level | IP65 |
| Terminal type | Solder |
| Voltage rating | 250V |
