XA1E-BV404R 16mm Emergency Stop Switch 40mm Mushroom 4NC IP65 IDEC

by IDEC
SKU 489682

MPN: XA1E-BV404R

Availability:
10 in stock
Original price £36.51 - Original price £36.51
Original price
£36.51 Inc VAT
£36.51 - £36.51
Current price £36.51 Inc VAT

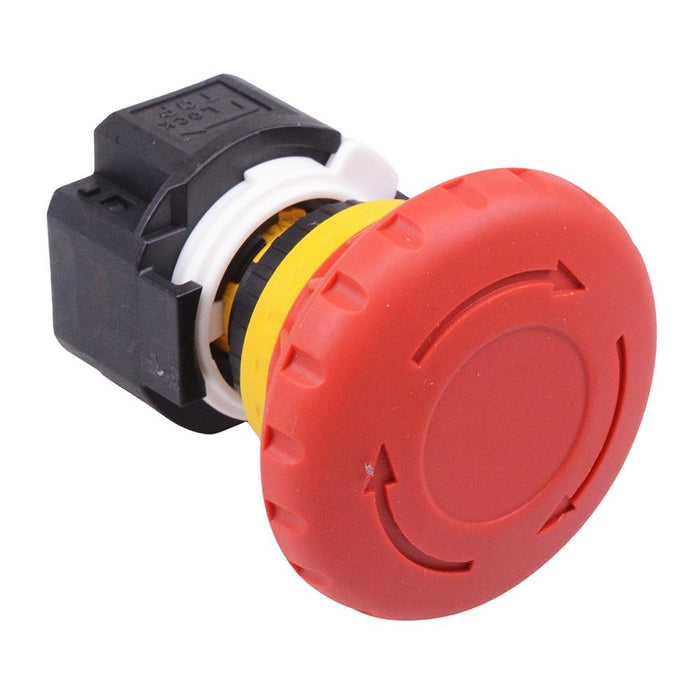

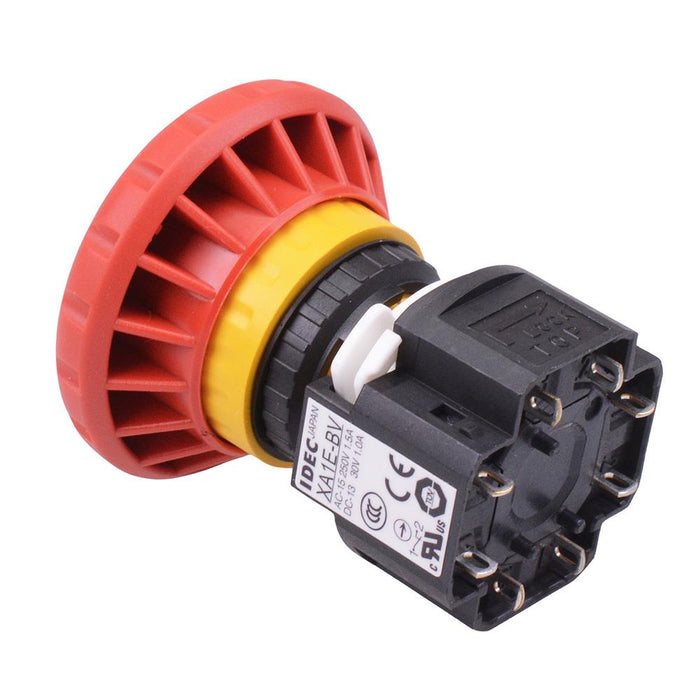

The XA1E-BV404R is a 16mm e-stop switch featuring a 40mm mushroom head and IP65 protection rating. The switch features the highest level of safety with "Safe Break Action" ensuring the safety of operator and system when the switch is damaged due to excessive shocks. The XA series is designed for a wide range of applications including robotics, AGVs, factory automation, manufacturing and other industrial uses.

  • Fail safe design
  • Contacts: 4NC
  • Rated current: 5A
  • Rated insulation voltage: 300V
  • Panel cut-out: 16.2mm
  • Panel thickness: 0.5-3.7mm
  • Behind panel depth: 27.9mm
  • Head diameter: 40mm
  • Solder terminals
  • UL, c-UL recognized. EN compliant
  • Specification
    Actuation Twist Release
    Back order lead time 10 Days
    Colour Red
    Contact configuration 4NC
    Contact material Gold Plated Silver
    Current rating 5A
    Electrical life 100,000 Cycles
    Head type Mushroom
    Illuminated No
    Moq 1
    Mounting style Panel
    Number of positions 2
    Operating temperature -25°C to +60°C
    Panel cut out 16.2mm
    Product series XA
    Protection level IP65
    Terminal type Solder
    Voltage rating 300V
