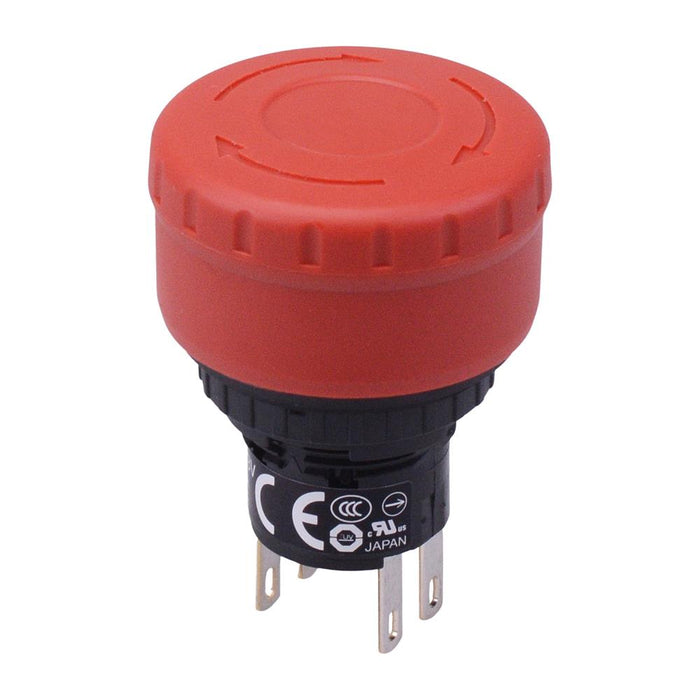

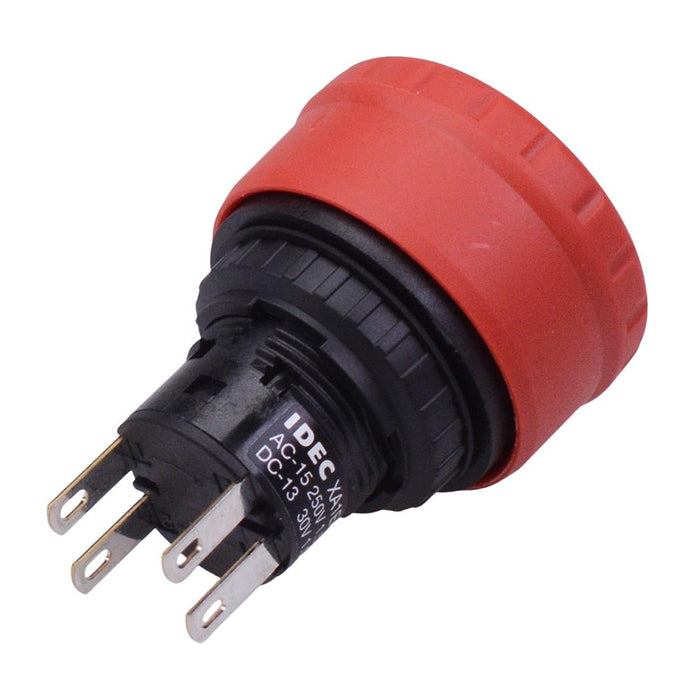

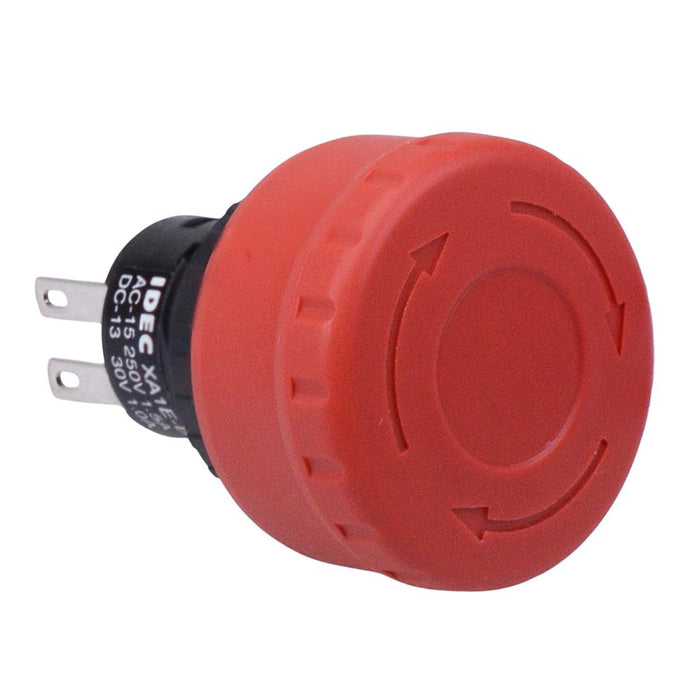

XA1E-BV3U02KT-R Unibody 16mm Emergency Stop Switch 2NC IP40 IDEC
by IDEC
SKU 493224
MPN: XA1E-BV3U02KT-R
Availability:
10 in stock
Original price
£24.43
-
Original price
£24.43
Original price
£24.43
£24.43
-
£24.43
Current price
£24.43
The XA1E-BV3U02KTR is a 16mm e-stop switch featuring unibody design and shallow behind panel depth. The switch features the highest level of safety with "Safe Break Action" ensuring the safety of operator and system when the switch is damaged due to excessive shocks. The XA series is designed for a wide range of applications including robotics, AGVs, factory automation, manufacturing and other industrial uses.
Fail safe design Contacts: 2NC Rated current: 5A Rated insulation voltage: 250V Panel cut-out: 16.2mm Panel thickness: 0.8-4.5mm Behind panel depth: 19.5mm Head diameter: 29mm Solder/tab terminals #110 UL, c-UL recognized. EN compliant
Specification
| Actuation | Twist Release |
| Back Order Lead Time | 126 Days |
| Colour | Red |
| Contact Configuration | 2NC |
| Contact Material | Gold Plated Silver |
| Contact Rating | 5A 250V |
| Current Rating | 5A |
| Electrical Life | 100,000 Cycles |
| Head Type | Mushroom |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +60°C |
| Panel Cut Out | 16.2mm |
| Product Series | XA |
| Protection Level | IP40 |
| Terminal Type | Quick Connect |
| Voltage Rating | 250V |
