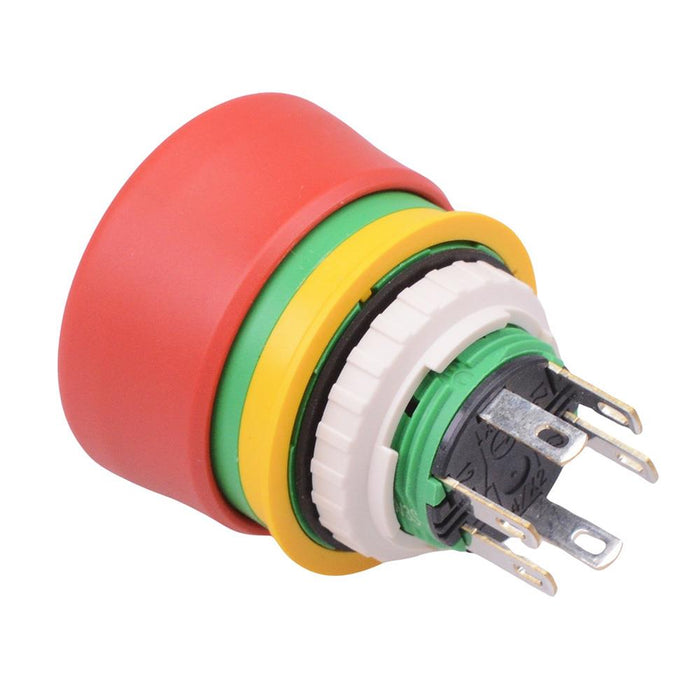

XA1E-BV3SG12TR Unibody 16mm Emergency Stop Switch 1NO-2NC IDEC

by IDEC
SKU 489656

MPN: XA1E-BV3SG12TR

Availability:
Only 4 left!
Original price £25.35 - Original price £25.35
Original price
£25.35 Inc VAT
£25.35 - £25.35
Current price £25.35 Inc VAT
The XA1E-BV3SG12TR is a short body e-stop switch compliant with ISO13850, ensuring the highest level of safety and functionality. The XA series features a minimalist installation footprint and unibody construction incorporating IDEC's 3rd generation reverse energy structure. The emergency stop switch features a green status indicator to check the operating status and an escape structure preventing foreign objects form being caught in operation. The switch is certified for outdoor use and is designed for applications including robotics, automated vehicles, EV charging, remote controls and many more.

  • Fail safe design
  • Contacts: 1NO-2NC
  • Rated current: 5A
  • Rated insulation voltage: 250V
  • Panel cut-out: 16.2mm
  • Panel thickness: 0.8-3.7mm
  • Behind panel depth: 17mm
  • Head diameter: 30mm
  • Solder/tab #110 terminals
  • ISO13850:2015 compliant
  • Specification
    Actuation Twist Release
    Back order lead time 10 Days
    Colour Red
    Contact configuration 1NO-2NC
    Current rating 5A
    Electrical life 100,000 Cycles
    Head type Mushroom
    Illuminated No
    Moq 1
    Mounting style Panel
    Number of positions 2
    Operating temperature -25°C to +70°C
    Panel cut out 16.2mm
    Product series XA
    Protection level IP65, IP67, IP69K
    Terminal type Quick Connect
    Voltage rating 250V
