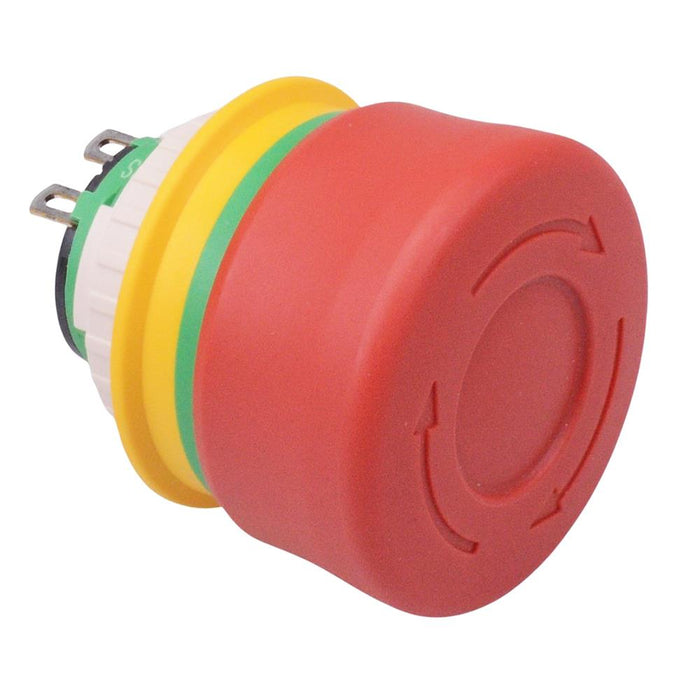

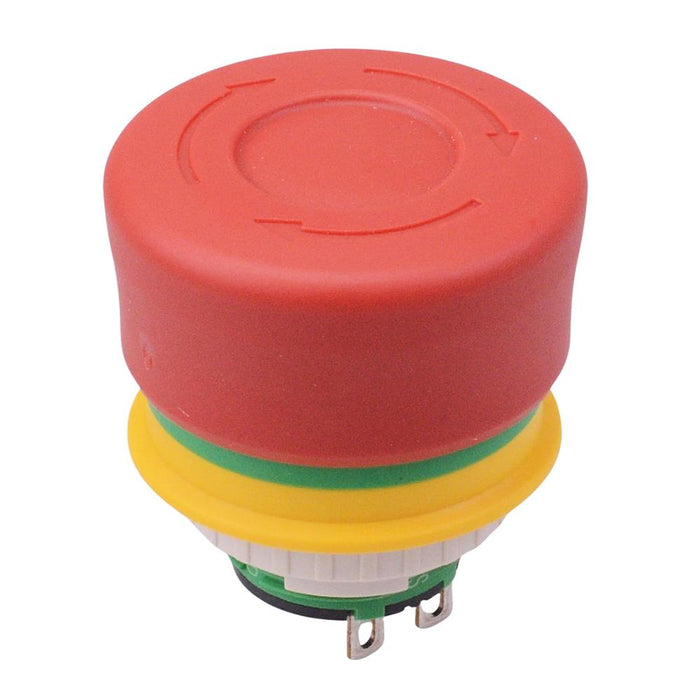

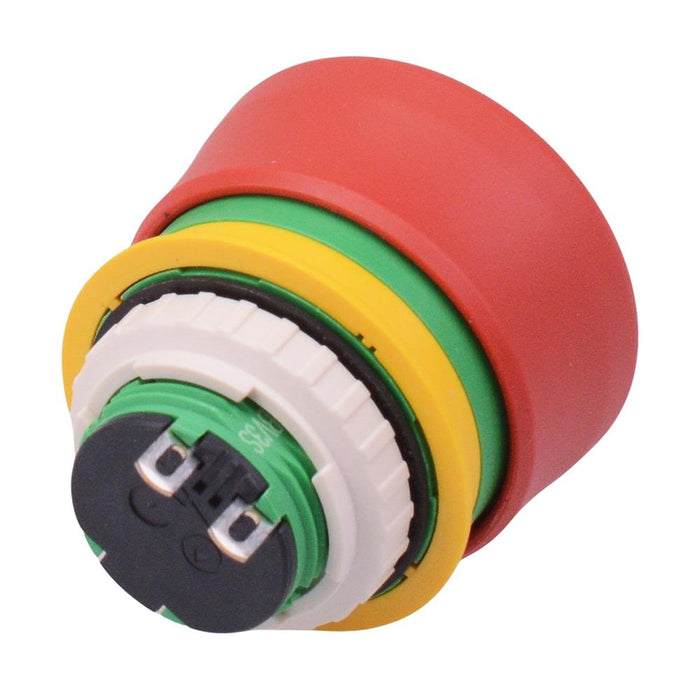

XA1E-BV3SG01R Unibody 16mm Emergency Stop Switch 1NC IDEC
by IDEC
SKU 493222
MPN: XA1E-BV3SG01R
Availability:
10 in stock
Original price
£19.39
-
Original price
£19.39
Original price
£19.39
£19.39
-
£19.39
Current price
£19.39
The XA1E-BV3SG01R is a short body e-stop switch compliant with ISO13850, ensuring the highest level of safety and functionality. The XA series features a minimalist installation footprint and unibody construction incorporating IDEC's 3rd generation reverse energy structure. The emergency stop switch features a green status indicator to check the operating status and an escape structure preventing foreign objects form being caught in operation. The switch is certified for outdoor use and is designed for applications including robotics, automated vehicles, EV charging, remote controls and many more.
Fail safe design Contacts: 1NO Rated current: 5A Rated insulation voltage: 250V Panel cut-out: 16.2mm Panel thickness: 0.8-3.7mm Behind panel depth: 12.6mm Head diameter: 30mm Solder terminals ISO13850:2015 compliant
Specification
| Actuation | Twist Release |
| Back Order Lead Time | 126 Days |
| Colour | Red |
| Contact Configuration | NC |
| Contact Material | Gold Plated Silver |
| Contact Rating | 5A 250V |
| Current Rating | 5A |
| Electrical Life | 100,000 Cycles |
| Head Type | Mushroom |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +70°C |
| Panel Cut Out | 16.2mm |
| Product Series | XA |
| Protection Level | IP65, IP67, IP69K |
| Terminal Type | Solder |
| Voltage Rating | 250V |
