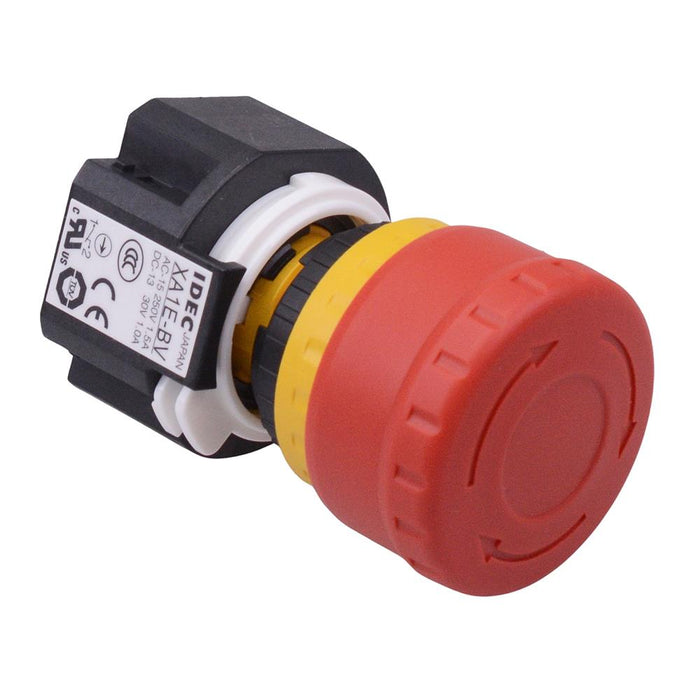

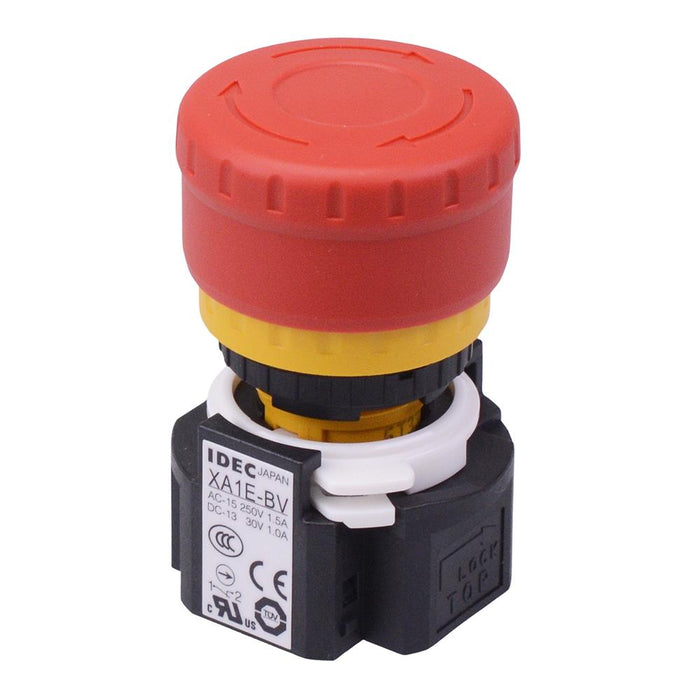

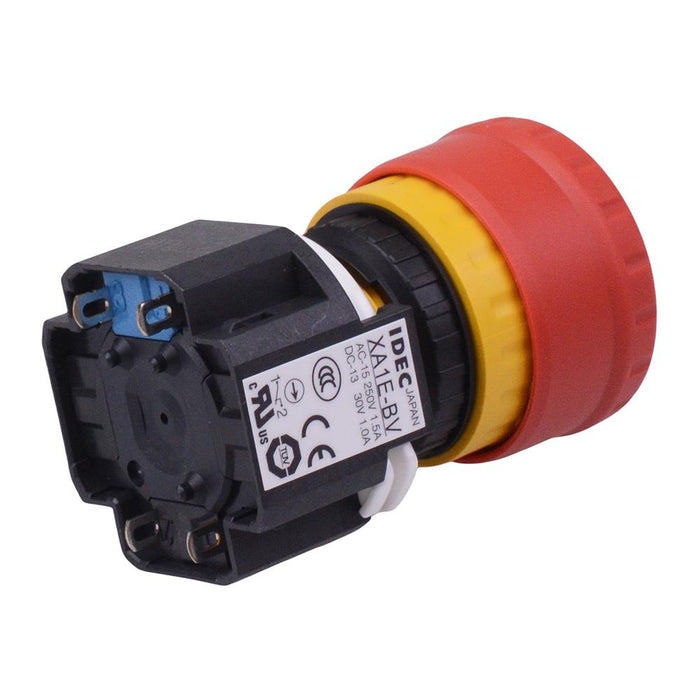

XA1E-BV311R 16mm Emergency Stop Switch 29mm Mushroom 1NO-1NC IP65 IDEC
by IDEC
SKU 493221
MPN: XA1E-BV311-R
Availability:
10 in stock
Original price
£32.32
-
Original price
£32.32
Original price
£32.32
£32.32
-
£32.32
Current price
£32.32
The XA1E-BV311R is a 16mm E-stop switch manufactured by IDEC, featuring a 29mm mushroom head and 1NO-1NC contacts. The switch features a fail-safe design with safe break technology which ensures all NC contacts are open if the contact block is separated. The switch meets major certifications and is suitable for a wide range of safety applications requiring a high quality emergency stop switch.
IDEC X-series switches use "Safe Break Action," a unique reverse energy structure that disconnects normally closed contacts, guaranteeing cut-off even if the emergency switch is damaged or the contact blocks separate.
1NO-1NC contacts 16mm panel hole diameter IP65 protection level Solder terminals 29mm mushroom head 5A 300VAC rating RU, TUV, CE, CCC certification
IDEC X-series switches use "Safe Break Action," a unique reverse energy structure that disconnects normally closed contacts, guaranteeing cut-off even if the emergency switch is damaged or the contact blocks separate.
Specification
| Actuation | Twist Release |
| Back Order Lead Time | 126 Days |
| Colour | Red |
| Contact Configuration | 1NO-1NC |
| Contact Material | Gold Plated Silver |
| Contact Rating | 5A 300V |
| Current Rating | 5A |
| Electrical Life | 100,000 Cycles |
| Head Type | Mushroom |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +60°C |
| Panel Cut Out | 16.2mm |
| Product Series | XA |
| Protection Level | IP65 |
| Terminal Type | Solder |
| Voltage Rating | 300V |
