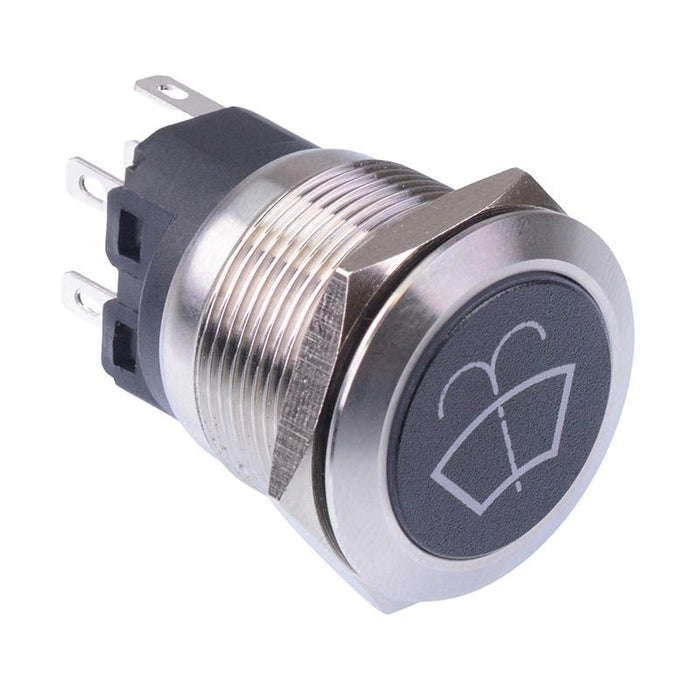

Window Washer' Blue LED Latching 22mm Vandal Push Button Switch SPDT 12V
by Langir
SKU 933411
MPN: 933411
Availability:
Out of stock
Sold out
Original price
£11.14
-
Original price
£11.14
Original price
£11.14
£11.14
-
£11.14
Current price
£11.14
Latching vandal resistant push button switch featuring a blue LED requiring 12V supply voltage and 22mm panel cut-out diameter. The switch housing is stainless steel giving it a long lifespan and resistance against rust. The switch features IP65 protection rating and is suitable for a range of 12V applications including automotive and marine.
Suitable for use with adhesive labels Latching action Blue 12V LED Panel cut-out: 22mm Panel thickness: 1-8mm Current rating: 3A Protection level: IP65 Contacts: NO/NC Material: stainless steel Terminals: 2.8 x 0.5mm Dimensions: 35.5 x 25mm (height x diameter)
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 Days |
| Contact Configuration | SPDT |
| Contact Rating | 3A 250VAC |
| Current Rating | 3A |
| Electrical Life | 30,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Blue |
| Illumination Voltage | 12VDC |
| Material | Stainless Steel |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Force | 3-5N |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 22mm |
| Panel Thickness | 1-8mm |
| Protection Level | IP65 |
| Switch Operation | On-On |
