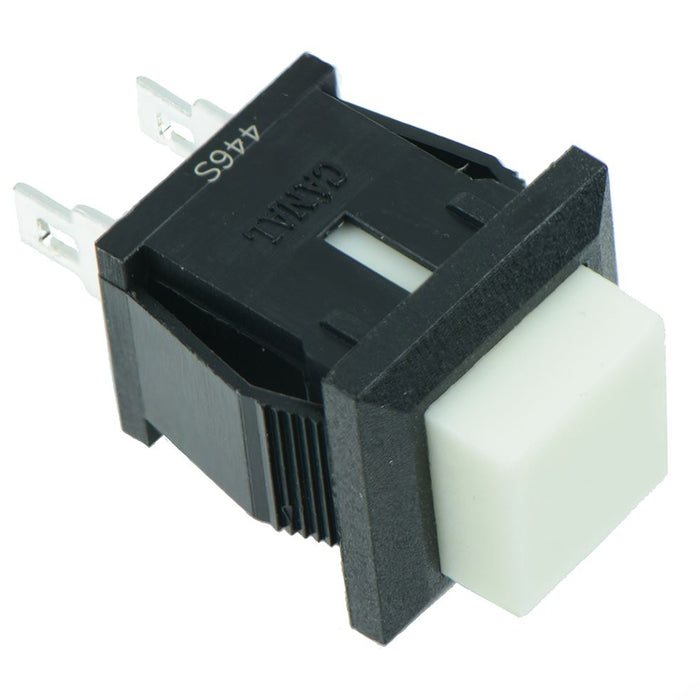

White Square Momentary Off-(On) Push to Make Switch 1A SPST

by Canal
SKU 550435

MPN: PS17-6-A0BW-C

Availability:
725 in stock
Original price £0.61 - Original price £0.61
Original price
£0.61 Inc VAT
£0.61 - £0.61
Current price £0.61 Inc VAT
Square push to make switch featuring SPST contacts and snap-in mounting.

  • Off-(On) push to make operation
  • Rating: 1A 125VAC
  • SPST contacts
  • Panel cut-out: 12.4 x 11mm
  • White actuator
  • Nylon 94V-2 housing
  • Dimensions: 24.9 x 14 x 14mm (H x W x L)
  • Specification
    Actuation Momentary
    Back order lead time 45 Days
    Colour White
    Contact configuration SPST
    Contact rating 1A 125VAC
    Current rating 1A
    Electrical life 10000 Cycles Min
    Illuminated No
    Illumination colour Non Illuminated
    Material PA66
    Mounting style Panel
    Number of positions 2
    Operating temperature 0°C to +65°C
    Panel cut out 12.4 x 11.0mm
    Switch operation Off-(On)
    Terminal type Solder
    Voltage rating 125VAC
