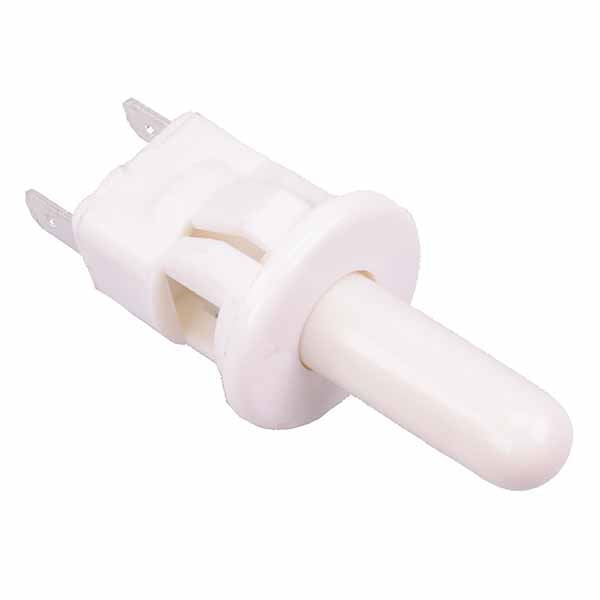

White On-(Off) Momentary Push Button Switch 19mm SPST
SKU 482216
MPN: 482216
Availability:
466 in stock
Original price
£0.75
-
Original price
£0.75
Original price
£0.75
Inc VAT
£0.75
-
£0.75
Current price
£0.75
Inc VAT
Push button switch featuring a white actuator and On-(Off) momentary push to break action, suitable for a range of door applications including fridges.
On-(Off) momentary action SPST contacts Rating: 5A 125VAC, 2.5A 250VAC Quick connect 4.8mm terminals Panel cut-out: 19.2mm Dimensions: 54.6 x 22.5mm (Height x Diameter) Actuator dimensions: 23.4mm x 9mm (Height x Diameter)
Specification
| Actuation | Momentary |
| Back order lead time | 45 Days |
| Colour | White |
| Contact configuration | SPST |
| Contact rating | 5A 125VAC, 2.5A 250VAC |
| Current rating | 5A @ 125VAC |
| Electrical life | 50,000 Cycles |
| Illuminated | No |
| Illumination colour | Non Illuminated |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 19.2mm |
| Switch operation | On-(Off) |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
