White On-Off Latching Round Push Button Switch 12mm SPST

by Canal
SKU 482702

MPN: PBS-11A-W White

Availability:
815 in stock
Original price £0.66 - Original price £0.66
Original price
£0.66 Inc VAT
£0.66 - £0.66
Current price £0.66 Inc VAT

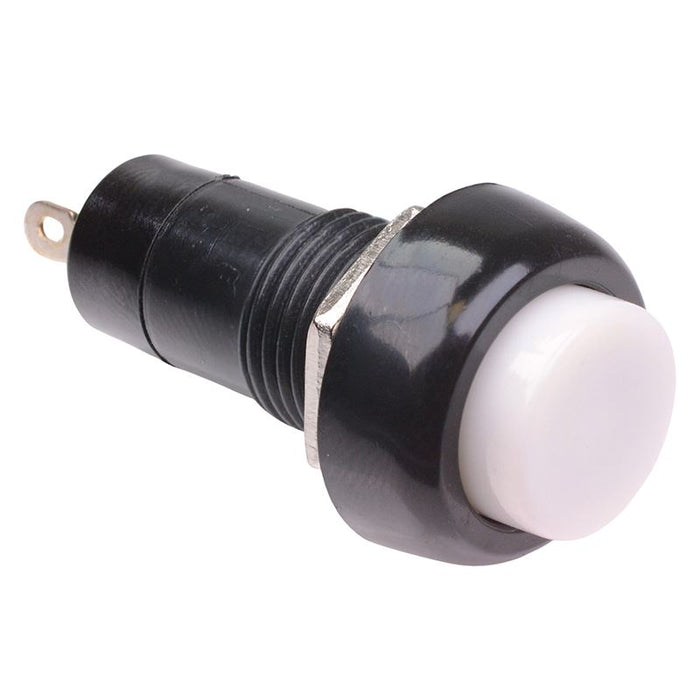

Latching push button switch featuring a white round actuator and SPST contacts.

  • Panel cut-out: 12mm
  • Button diameter: 12mm
  • Rating: 1A 250VAC
  • Solder lug terminals
  • On-Off operation
  • Dimensions: 38.2 x 19mm (Height x Diameter)
  • Specification
    Actuation Latching
    Back order lead time 45 Days
    Colour White
    Contact configuration SPST
    Contact rating 1A 250VAC
    Current rating 1A
    Electrical life 5000 Cycles
    Illuminated No
    Illumination colour Non Illuminated
    Mounting style Panel
    Number of positions 2
    Panel cut out 12mm
    Switch operation On-Off
    Terminal type Solder
    Voltage rating 250VAC
