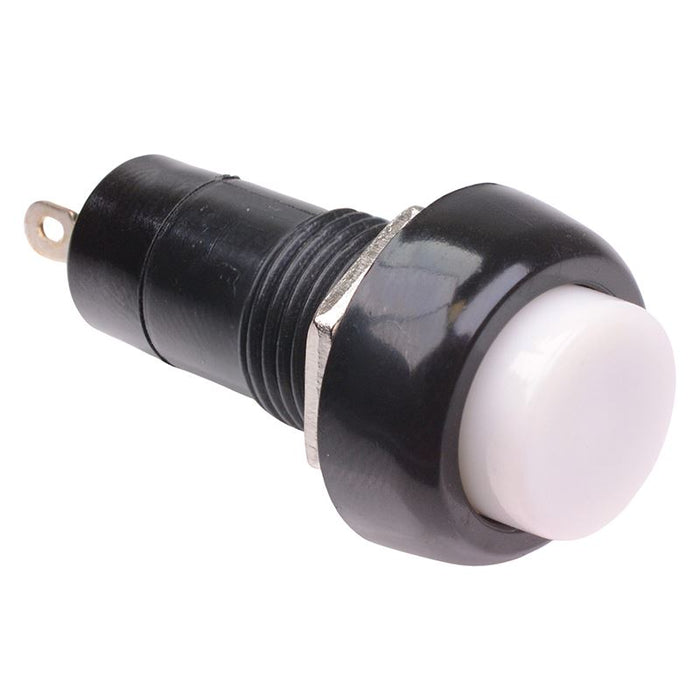

White Off-(On) Momentary Round Push Button Switch 12mm SPST
by Canal
SKU 482703
MPN: PBS-11B-W White
Availability:
422 in stock
Original price
£0.69
-
Original price
£0.69
Original price
£0.69
Inc VAT
£0.69
-
£0.69
Current price
£0.69
Inc VAT
Momentary push button switch featuring a white round actuator and SPST contacts.
Panel cut-out: 12mm Button diameter: 12mm Rating: 1A 250VAC Solder lug terminals Off-(On) momentary operation Dimensions: 38.2 x 19mm (Height x Diameter)
Specification
Actuation | Momentary |
Back order lead time | 45 Days |
Colour | White |
Contact configuration | SPST |
Contact rating | 1A 250VAC |
Current rating | 1A |
Electrical life | 5000 Cycles |
Illuminated | No |
Illumination colour | Non Illuminated |
Mounting style | Panel |
Number of positions | 2 |
Panel cut out | 12mm |
Switch operation | Off-(On) |
Terminal type | Solder |
Voltage rating | 250VAC |
