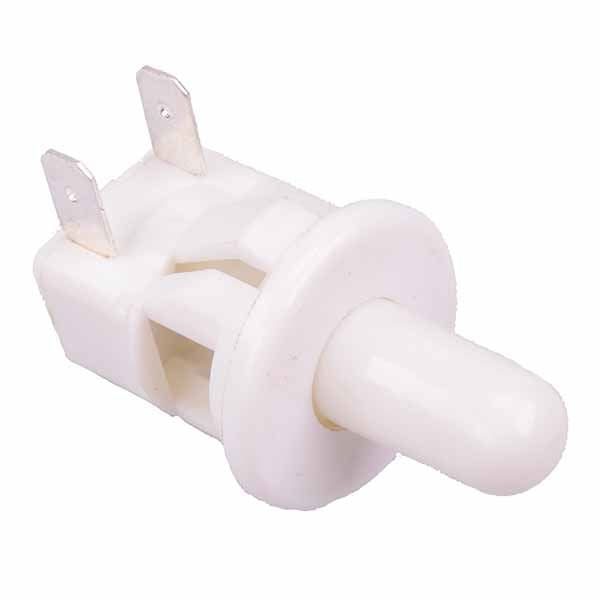

White Off-(On) Momentary Push Button Switch 19mm SPST Side Terminals

SKU 482217

MPN: 482217

Availability:
Out of stock
Sold out
Original price £0.85 - Original price £0.85
Original price
£0.85 Inc VAT
£0.85 - £0.85
Current price £0.85 Inc VAT
Push button switch featuring an Off-(On) push to make momentary action and horizontal terminals, suitable for a range of door applications including fridges.

  • Off-(On) momentary action
  • SPST contacts
  • Rating: 5A 125VAC, 2.5A 250VAC
  • Quick connect 4.8mm terminals
  • Panel cut-out: 19.2mm
  • Dimensions: 39 x 20 x 22.5mm (Height x Length x Diameter)
  • Actuator dimensions: 15.4mm x 9mm (Height x Diameter)
  • Specification
    Actuation Momentary
    Back order lead time 45 Days
    Colour White
    Contact configuration SPST
    Contact rating 5A 125VAC, 2.5A 250VAC
    Current rating 5A @ 125VAC
    Electrical life 50,000 Cycles
    Illuminated No
    Illumination colour Non Illuminated
    Mounting style Panel
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 19.2mm
    Switch operation Off-(On)
    Terminal type Quick Connect
    Voltage rating 250VAC
