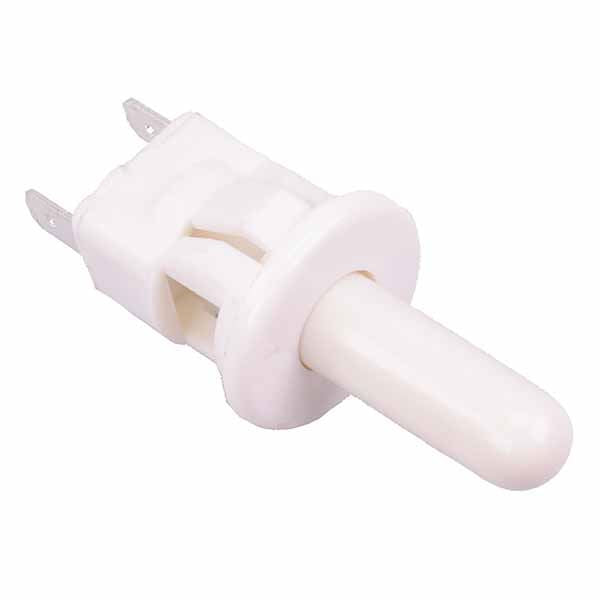

White Off-(On) Momentary Push Button Switch 19mm SPST

SKU 482215

MPN: 482215

Availability:
481 in stock
Original price £0.88 - Original price £0.88
Original price
£0.88 Inc VAT
£0.88 - £0.88
Current price £0.88 Inc VAT
Push button switch featuring a white actuator and Off-(On) push to make momentary action, suitable for a range of door applications including fridges.

  • Off-(On) momentary action
  • SPST contacts
  • Rating: 5A 125VAC, 2.5A 250VAC
  • Quick connect 4.8mm terminals
  • Panel cut-out: 19.2mm
  • Dimensions: 54.6 x 22.5mm (Height x Diameter)
  • Actuator dimensions: 23.4mm x 9mm (Height x Diameter)
  • Specification
    Actuation Momentary
    Back order lead time 45 Days
    Colour White
    Contact configuration SPST
    Contact rating 5A 125VAC, 2.5A 250VAC
    Current rating 5A @ 125VAC
    Electrical life 50,000 Cycles
    Illuminated No
    Illumination colour Non Illuminated
    Mounting style Panel
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 19.2mm
    Switch operation Off-(On)
    Terminal type Quick Connect
    Voltage rating 250VAC
    Request a quote
