White Momentary Vandal Resistant Push Button Switch 2A SPST

by Langir
SKU 485893

MPN: V12BP1S-W

Availability:
44 in stock
Original price £5.05 - Original price £5.05
Original price
£5.05 Inc VAT
£5.05 - £5.05
Current price £5.05 Inc VAT

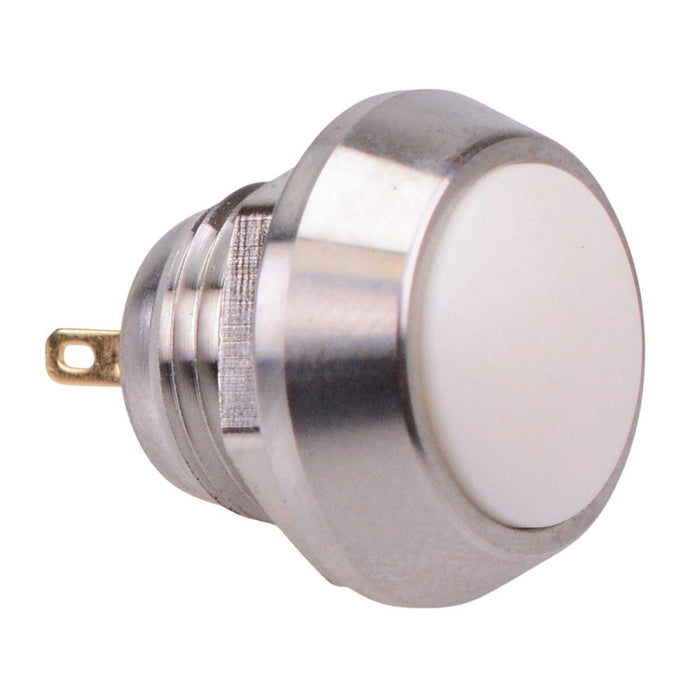

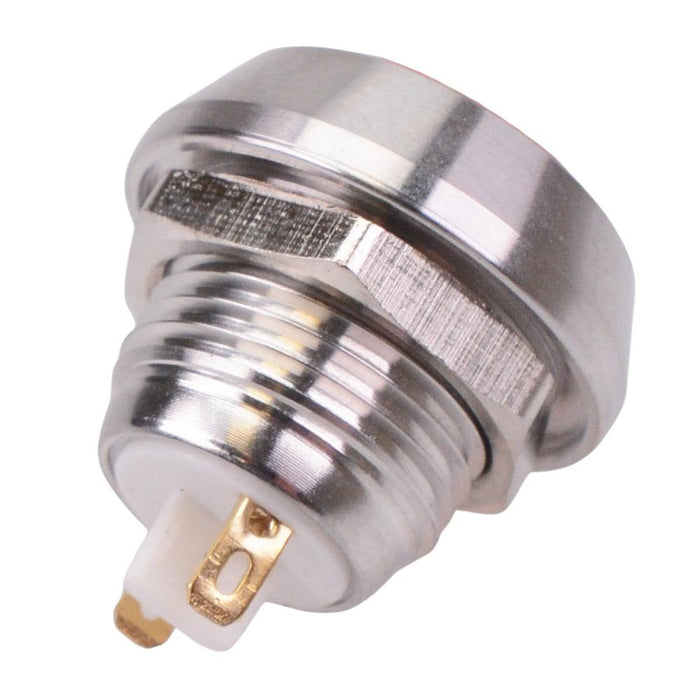

White vandal resistant push button switch featuring a round actuator and robust stainless steel alloy body. The switch features a IP65 sealed construction and NO SPST contacts suitable for a wide variety of applications.

  • Momentary action
  • SPST contacts
  • Stainless steel body material
  • 12mm panel cut-out
  • 2A 48VDC rating
  • Solder terminals
  • 1,000,000 mechanical cycles
  • Specification
    Actuation Momentary
    Back order lead time 45 Days
    Colour White
    Contact configuration SPST
    Contact rating 2A 48VDC
    Current rating 2A
    Electrical life 200,000 Cycles
    Illuminated No
    Illumination colour Non Illuminated
    Material Stainless Steel
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating force 5N
    Operating temperature -20°C to +55°C
    Panel cut out 12mm
    Panel thickness 6mm Max
    Protection level IP65
    Switch operation Off-(On)
    Terminal type Solder
    Voltage rating 48VDC
