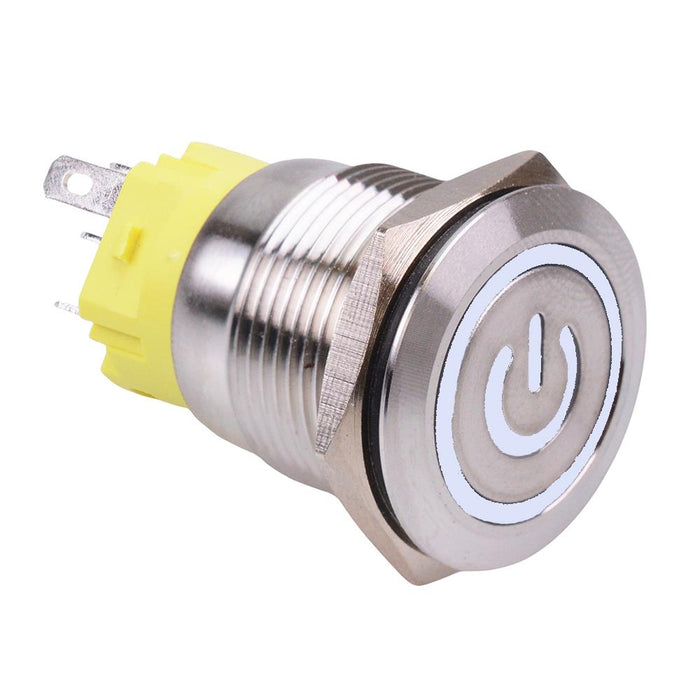

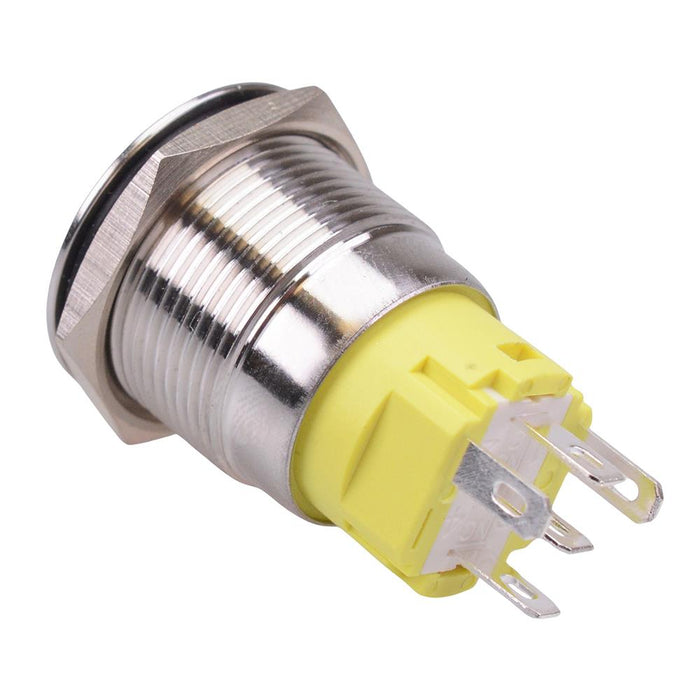

White LED On-On Latching 19mm Vandal Push Switch NO/NC Power Symbol
SKU 482300
MPN: 482300
Availability:
Out of stock
Sold out
Original price
£5.93
-
Original price
£5.93
Original price
£5.93
Inc VAT
£5.93
-
£5.93
Current price
£5.93
Inc VAT
Vandal resistant push button switch featuring illuminated power symbol manufactured from metal, featuring a white LED and NO/NC contacts. The switch features IP67 protection and is suitable for 12V applications.
- Latching On-On action
- White LED
- 12V illumination voltage
- IP67 protection rating
- 19mm panel cut-out diameter
- NO/NC contacts
- Solder terminals
- Rating: 5A 250VAC
Specification
| Actuation | Latching |
| Back order lead time | 30 Days |
| Colour | White |
| Contact configuration | SPDT |
| Contact rating | 5A 250VAC |
| Current rating | 5A |
| Electrical life | 50,000 Cycles |
| Illuminated | Yes |
| Illumination colour | White |
| Illumination voltage | 12VDC |
| Material | Stainless Steel |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -20°C to +55°C |
| Panel cut out | 19mm |
| Protection level | IP67 |
| Switch operation | On-On |
| Terminal type | Solder |
| Voltage rating | 250VAC |
