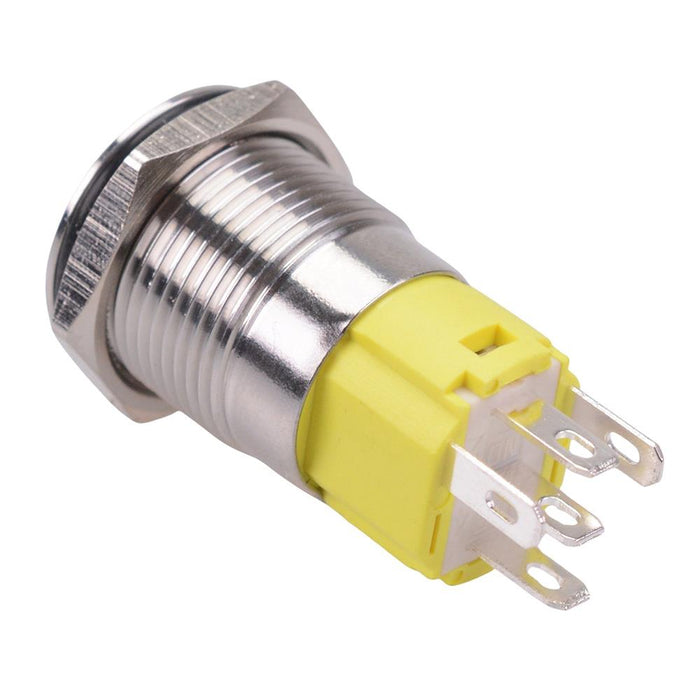

White LED 3V On-(On) Momentary 16mm Vandal Push Switch SPDT

SKU 484994

MPN: 484994

Availability:
11 in stock
Original price £6.52 - Original price £6.52
Original price
£6.52 Inc VAT
£6.52 - £6.52
Current price £6.52 Inc VAT
White LED momentary vandal resistant push button switch manufactured from stainless steel, featuring NO/NC contacts. The switch features IP65 protection rating and is suitable for 3V applications including use as a computer power switch.

  • Momentary On-(On) action
  • White LED
  • 3V illumination voltage
  • IP65 protection rating
  • 16mm panel cut-out diameter
  • NO/NC contacts
  • 2.8mm terminals
  • Rating: 3A 250VAC
  • Specification
    Actuation Momentary
    Back order lead time 30 Days
    Colour White
    Contact configuration SPDT
    Contact rating 3A 250VAC
    Current rating 3A
    Electrical life 50,000 Cycles
    Illuminated Yes
    Illumination colour White
    Illumination voltage 3VDC
    Material Stainless Steel
    Mounting style Panel
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 16mm
    Protection level IP65
    Switch operation On-(On)
    Terminal type Quick Connect
    Voltage rating 250VAC
