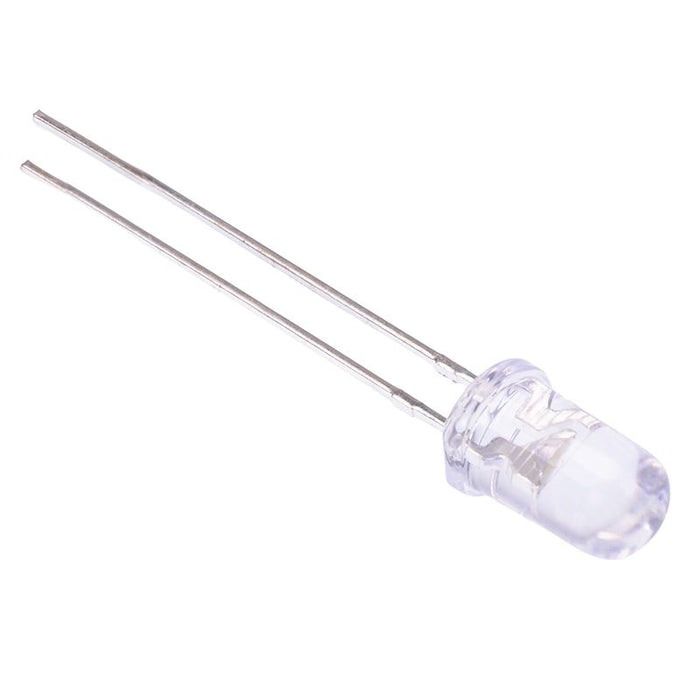

White 5mm Water Clear LED 8500mcd 30°
by Luckylight
SKU 484842
MPN: 504WC2V-W2-3PD
Availability:
5479 in stock
Original price
£0.13
-
Original price
£0.13
Original price
£0.13
£0.13
-
£0.13
Current price
£0.13
White 5mm LED featuring a water clear package and 8500mcd luminous intensity suitable for applications including use as indicators, backlighting and illumination.
Luminous intensity: 8500mcd Colour temperature: 11,000K Viewing angle: 30° Forward voltage: 3.1V Forward current: 25mA Suitable for through-hole mounting Cathode identified as the shorter lead 2.54mm lead pitch Water clear lens Excellent weather resistance Long lifespan
Specification
| Back Order Lead Time | 40 Days |
| Colour | White |
| Colour Temperature | 11,000K |
| Diameter | 5mm |
| Forward Current | 25mA |
| Forward Voltage | 3.1V |
| Lens Colour | Clear |
| Lens Shape | Round |
| Luminous Intensity | 8500mcd |
| Mode | Constant |
| MOQ | 5 |
| Mounting Style | Through Hole |
| Number of Pins | 2 |
| Operating Temperature | -40°C to +80°C |
| Package | 5mm |
| Packaging | Bulk |
| Power Dissipation | 90mW |
| Viewing Angle | 30° |
