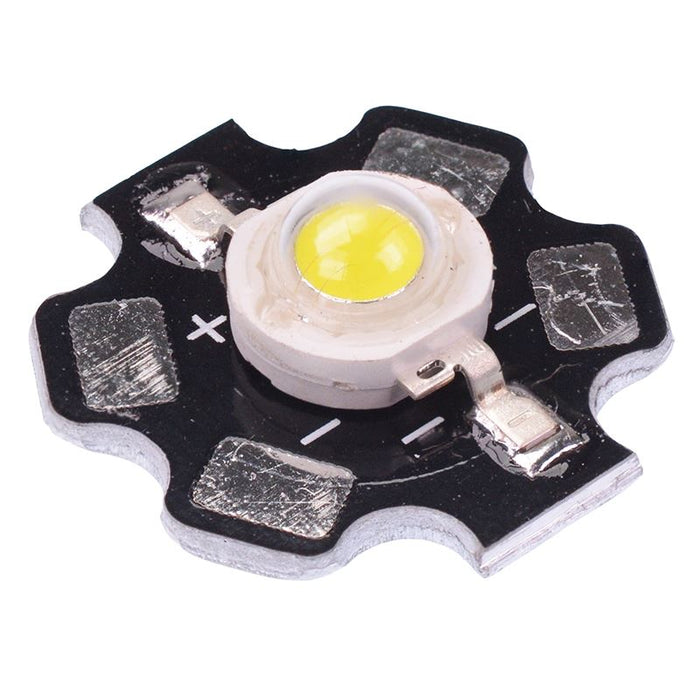

White 3W Star High Power LED 230lm 135°
by Luckylight
SKU 484873
MPN: HP70NWJ
Availability:
753 in stock
Original price
£0.93
-
Original price
£0.93
Original price
£0.93
£0.93
£0.93
-
£0.93
Current price
£0.93
White high power 3W LEDs featuring a high luminous flux and excellent energy efficiency. The LEDs feature a low profile design with a small package suitable for a range of applications including backlighting, illumination and indication.
Luminous flux: 230lm Colour temperature: 6500K Viewing angle: 135° Forward voltage: 3.4V Forward current: 700mA Yellow diffused lens Excellent weather resistance Long lifespan
Specification
| Back Order Lead Time | 40 Days |
| Colour | Cool White |
| Colour Temperature | 6500K |
| Diameter | 8.0mm |
| Forward Current | 700mA |
| Forward Voltage | 3.4V |
| Lens Colour | Clear |
| Lens Shape | Round |
| Luminous Flux | 230lm |
| Luminous Intensity | 230lm |
| Mounting Style | Surface Mount |
| Number of Pins | 2 |
| Operating Temperature | -40°C to 85°C |
| Package | PCB Substrate |
| Packaging | Bulk |
| Power Dissipation | 2660mW |
| Power Rating | 3W |
| Viewing Angle | 135° |
