White 2.1mm x 5.5mm Panel Mount DC Power Socket DC-022B
SKU 483045
MPN: 483045
Availability:
1166 in stock
Original price
£0.22
-
Original price
£0.22
Original price
£0.22
Inc VAT
£0.22
-
£0.22
Current price
£0.22
Inc VAT

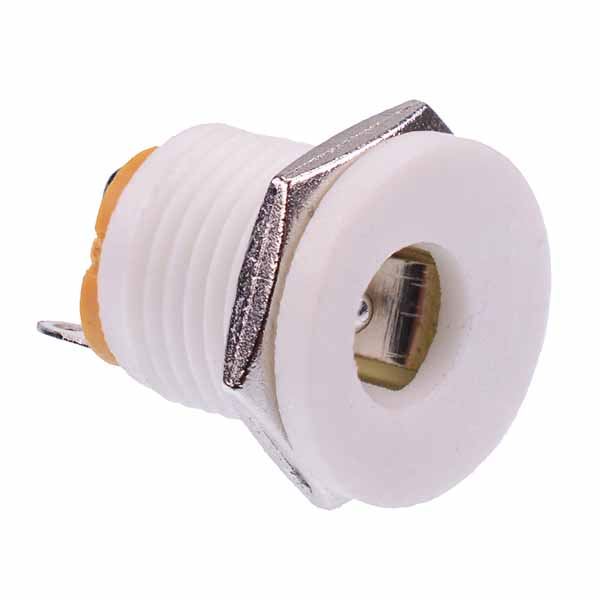

White panel mount DC power socket featuring a 2.1mm center pin and 12mm panel cut-out suitable for a wide range of low power applications.
2.1mm x 5.5mm size Solder lug termination Panel cut-out: 12mm Current rating: 1A Voltage rating: 30VDC Suitable for panel thickness up to 8mm Dimensions: 18 x 13.6mm (Length x Diameter) Supplied with fixing nut
Specification
| Back order lead time | 30 Days |
| Colour | White |
| Contact material | Nickel Plated Brass |
| Contact rating | 0.5A 30VDC |
| Housing material | ABS |
| Inner diameter | 2.1mm |
| Mounting type | Panel |
| Number of pins | 3 |
| Operating temperature | -30°C to +70°C |
| Outer diameter | 5.5mm |
| Panel cut out | 8mm |
| Termination method | Solder |
