Waterproof On-Off Rectangle Rocker Switch IP68 SPST 10A 250VAC
by Canal
SKU 492100
MPN: MR2-110C2N-NBBP-29NC
Availability:
20 in stock
Original price
£1.82
-
Original price
£1.82
Original price
£1.82
£1.82
-
£1.82
Current price
£1.82

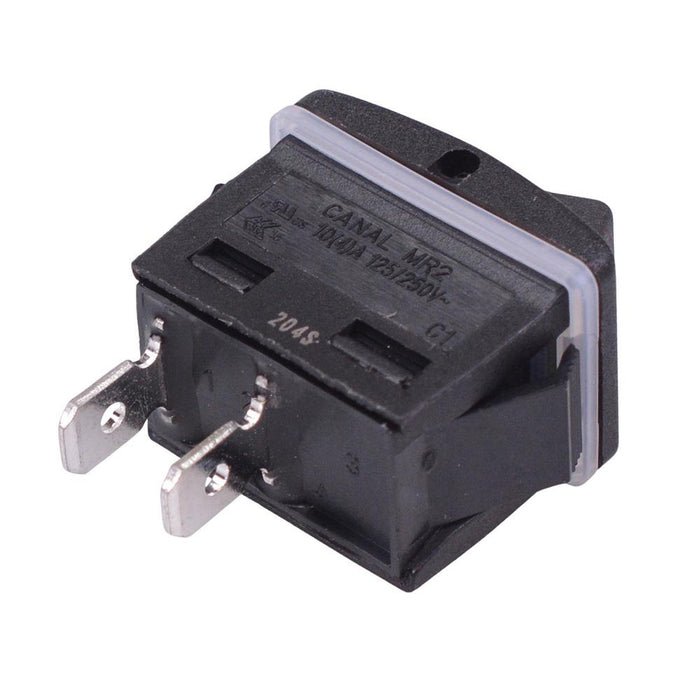

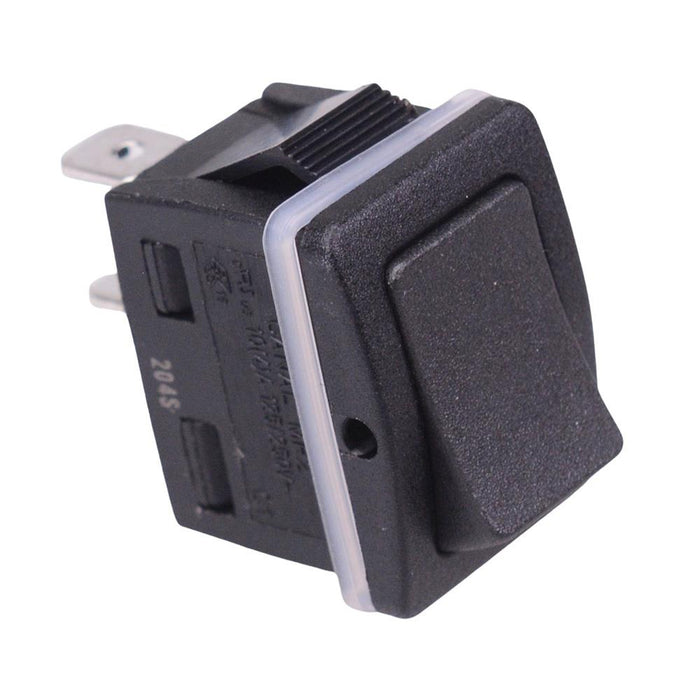

Waterproof rectangle rocker switch featuring SPST contacts and On-Off function. The switch requires a 19.2 x 12.9mm panel cut-out and features IP68 protection rating above the panel. The switch is rated up to 16A making it suitable for a wide range of AC applications.
Function: On-Off Contacts: SPST Panel cut-out: 19.2 x 12.9mm Panel thickness: 0.75-3mm Rating: 10(4)A 250VAC Protection rating: IP68 (above the panel) 4.8mm quick connect terminals Dimensions: 21.0 x 15.0 x 27.2mm (length x width x height)
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 Days |
| Contact Configuration | SPST |
| Contact Rating | 10(4)A 250VAC |
| Current Rating | 10A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Panel Cut Out | 19.2 x 12.9mm |
| Panel Thickness | 0.75-3mm |
| Protection Level | IP68 |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
