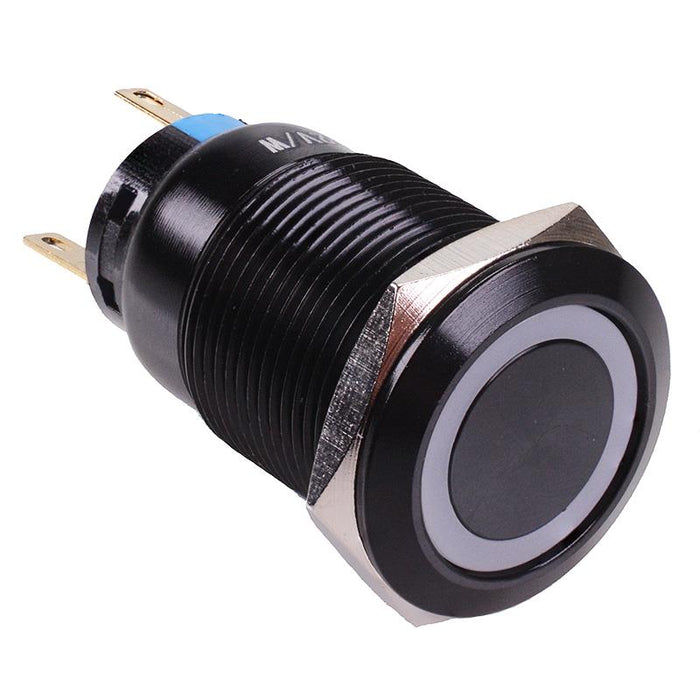

Warm White LED Momentary On-(On) 19mm Black Vandal Resistant Push Switch
SKU 483362
MPN: 483362
Availability:
62 in stock
Original price
£4.53
-
Original price
£4.53
Original price
£4.53
£4.53
-
£4.53
Current price
£4.53
Vandal resistant momentary push button switch featuring a warm white LED and NO/NC contacts. The switch features IP65 protection and is suitable for 12V applications.
Momentary On-(On) action Warm white LED 12V illumination voltage IP65 protection rating 19mm panel cut-out diameter NO/NC contacts 2.8mm terminals Rating: 5A 250VAC
Specification
| Actuation | Momentary |
| Back Order Lead Time | 30 Days |
| Colour | Warm White |
| Contact Configuration | SPDT |
| Contact Rating | 5A 250VAC |
| Current Rating | 5A |
| Electrical Life | 50,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Warm White |
| Illumination Voltage | 12VDC |
| Material | Zinc Alloy |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 19mm |
| Protection Level | IP65 |
| Switch Operation | On-(On) |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
